Industrial Annealing Furnace for Heavy Metal Components
An Industrial Annealing Furnace is used to heat metal components under controlled conditions to reduce internal stress, improve material stability, and prepare parts for further processing.
For large and heavy workpieces, a trolley-type furnace is especially practical. It allows operators to load metal parts outside the chamber and move them into the furnace through a rail-based trolley system.
🔵 View WOLFU Industrial Annealing Furnace

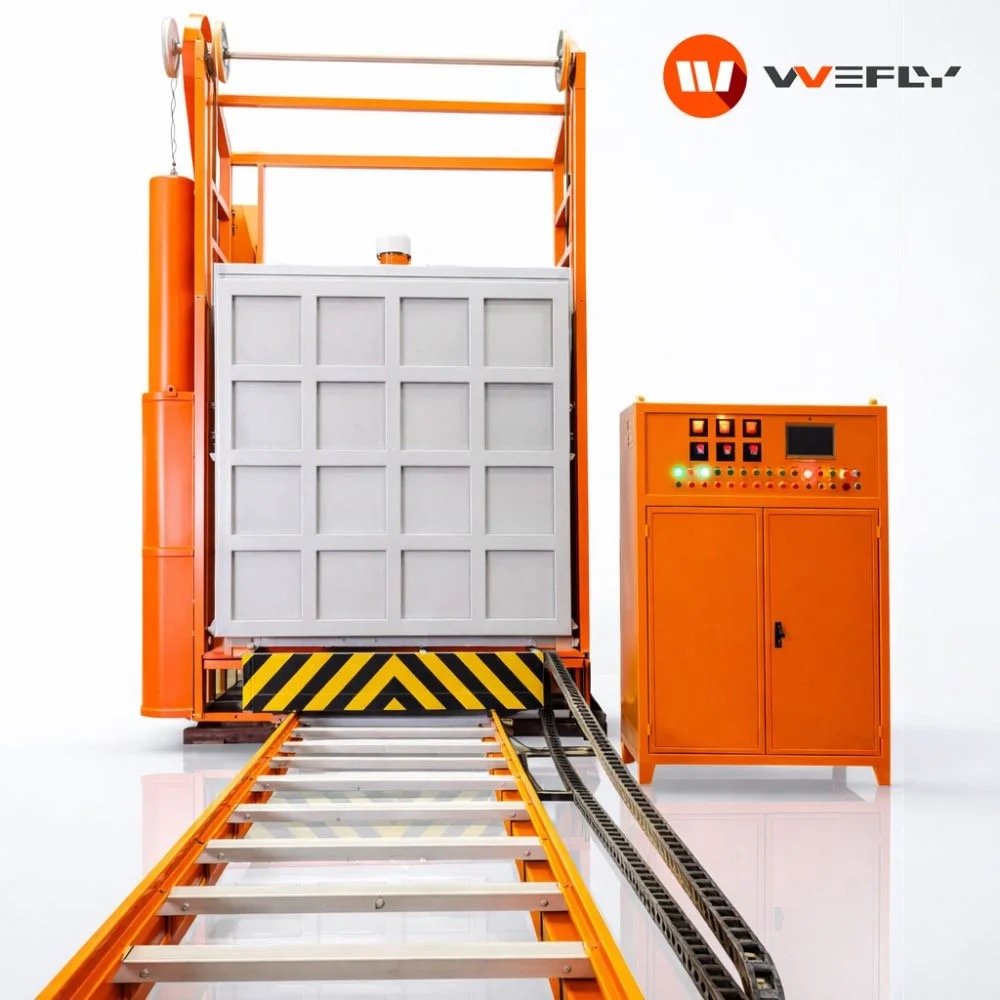

The WOLFU Trolley Type Annealing Furnace is designed for manganese steel, heavy-duty metal components, and continuous industrial heat treatment. It combines stable resistance heating, programmable temperature control, and a durable trolley structure.
Key Specifications
| Feature | Specification | Benefit |
|---|---|---|
| Working Temperature | 0–1150°C | Suitable for multiple heat treatment processes |
| Capacity | 10T | Supports heavy workpieces and batch production |
| Power | 130 kW | Provides stable industrial heating |
| Heating Method | Left, right, and bottom heating | Improves temperature uniformity |
| Control System | 2-zone control with 7-inch touch screen | Supports programmable and repeatable processes |
| Data Management | Real-time recording and USB export | Makes production tracking easier |
How the Trolley Type Annealing Furnace Works
Step 1: Load the Workpieces
Metal components are placed on the trolley outside the heating chamber. This makes loading easier for heavy and large parts.
Step 2: Move the Trolley into the Furnace
The traction motor moves the trolley into the chamber. The electric lifting furnace door then closes securely.
Step 3: Start the Heating Program
The furnace uses resistance heating elements on the left, right, and bottom sides. This three-direction heating structure helps distribute heat more evenly.
Step 4: Record and Export Process Data
The control system supports programmable heating curves, real-time temperature recording, and USB data export. Operators can review process data after each production cycle.
Main Advantages
Suitable for Heavy-Duty Heat Treatment
The 10T trolley structure is designed for manganese steel and large metal components. It is suitable for annealing, stress relief, and industrial component conditioning.
More Uniform Heating
The furnace heats from the left, right, and bottom sides. This improves temperature consistency across large workpieces.
Programmable Process Control
The 7-inch touch screen supports 30-segment temperature curves, real-time records, and USB data export. This makes repeat production easier to manage.
Durable Industrial Structure
The furnace uses a reinforced steel shell, CO₂ shielded welding, an anti-corrosion surface coating, ceramic fiber insulation, and an electric lifting furnace door.
Common Applications
The WOLFU Industrial Annealing Furnace is suitable for:
- Manganese steel heat treatment
- Metal annealing and stress relief
- Aluminum and copper homogenization
- Heavy industrial component conditioning
- Selected battery recycling thermal processes
Related WOLFU Equipment
For vacuum heat treatment applications, review the:
🔵 Vacuum Controlled Atmosphere Quenching Furnace
For metal melting and foundry production, review the:
🔵 Medium Frequency Induction Melting Furnace
Why Choose WOLFU?
WOLFU provides industrial furnace systems, recycling lines, and customized metal processing equipment.
The annealing furnace can be customized according to workshop layout, workpiece load, and heat treatment process curve. Spare parts support is also available for heating elements, control cabinets, and refractory components.
Conclusion
An Industrial Annealing Furnace helps factories improve metal heat treatment stability, temperature control, and production efficiency.
With a 10T trolley structure, 0–1150°C working range, three-direction heating, programmable temperature curves, and USB data export, the WOLFU furnace is suitable for heavy-duty industrial production.
🔵 Get a Quote for WOLFU Industrial Annealing Furnace
FAQ
What is the maximum temperature of the WOLFU annealing furnace?
The maximum operating temperature is 1150°C.
What is the furnace capacity?
The standard model has a 10T capacity and can be customized according to production requirements.
Does the furnace support programmable temperature curves?
Yes. The furnace supports 30-segment temperature curves, real-time recording, and USB data export.
