Annealing Furnace Specifications
Standardized technical parameters for industrial heat treatment applications.
| Product Type | Trolley Type Annealing Furnace (Heat Treatment Furnace) |
|---|---|
| Furnace Model | Annealing Furnace |
| Max Temperature | 1150°C |
| Working Temperature | 0–1150°C |
| Voltage | 380V |
| Power | 130 kW |
| Capacity | 10T |
| Workpiece Material | Manganese Steel |
| Heating Element | Resistance Wire (Cr21-Al6-Nb heating belt / wire) |
| Heating Method | 3-direction heating (Left / Right / Bottom) |
| Cooling Type | Water Cooling |
| Control System | 2-zone temperature control, 7-inch touch screen, program & record; USB data export |
| Core Components | Motor |
| Furnace Door | Electric lifting |
| Trolley Structure | Channel steel base + load wheels + traction motor |
| Dimensions (L×W×H) | 1800 × 1400 × 1400 mm |
| Weight | 10 tons |
| Origin | Henan, China |
| Certifications | CE, ISO |
| Warranty | 1 year |
| Mechanical Test Report | Provided |
| Video Outgoing Inspection | Provided |
| Key Selling Points | Easy operation, remote control, energy-saving, high safety level |
- Parameters can be customized based on your workshop layout, load, and process curve.
- For heavy-duty continuous operation, spare parts support is available (heating belt/wire, control cabinet, refractory fittings).

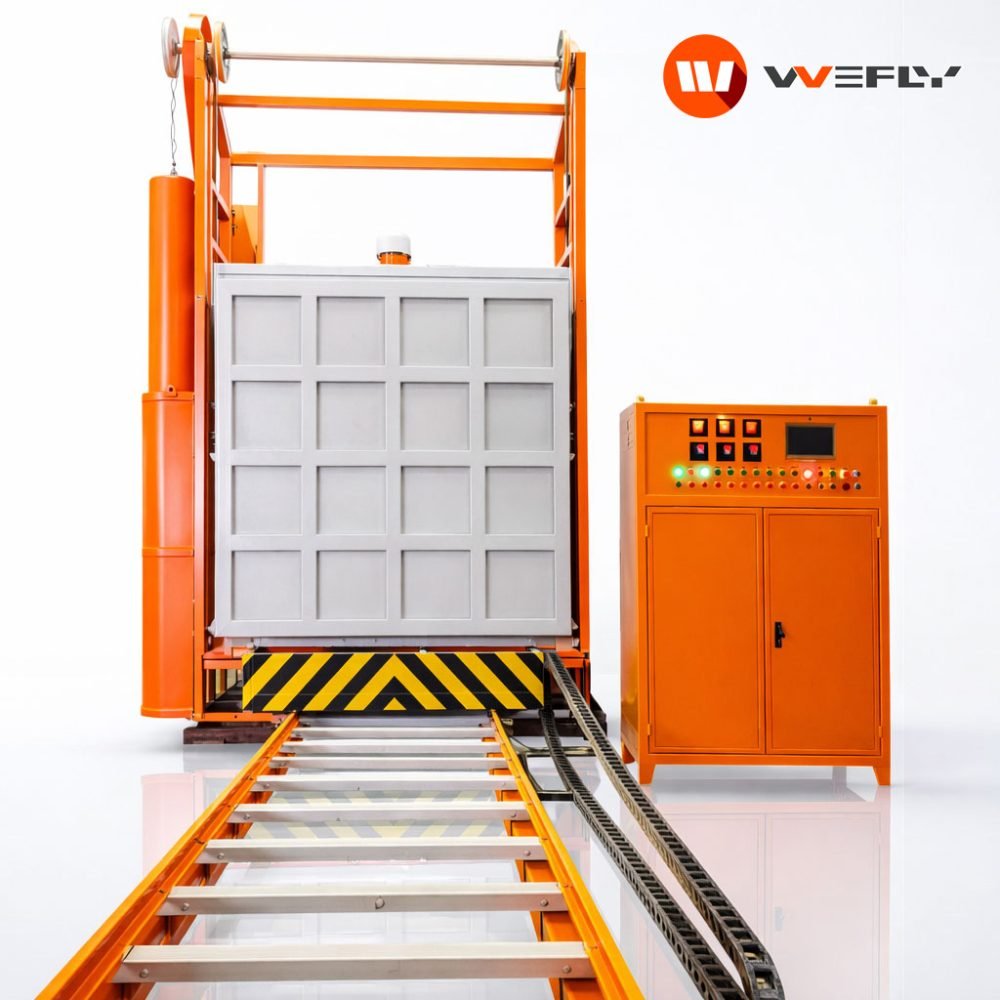

Industrial Trolley Type Annealing Furnace
The Wolfu trolley-type annealing furnace is engineered for precision heat treatment of heavy-duty metal components.
Designed for continuous industrial operation, this system delivers stable heating performance, programmable temperature control,
and optimized energy efficiency for metallurgical production lines.
Structural Design & Construction
- 4.0 mm reinforced steel furnace shell
- CO₂ shielded welding for enhanced durability
- Industrial anti-corrosion surface coating
- Channel steel trolley base with traction motor
- Electric lifting furnace door system
Advanced Heating System
- Chromium 21 Aluminum 6 Niobium resistance heating elements
- Three-direction heating (left / right / bottom)
- Ceramic fiber insulation lining
- Energy-efficient bottom heating structure
- Long service life heating belt configuration
Intelligent Temperature Control
- 2-zone independent temperature control
- 7-inch industrial touch screen interface
- Programmable 30-segment temperature curves
- Real-time temperature recording
- USB data export support
- Remote monitoring option
Main Applications
- Metal annealing and stress relief
- Manganese steel heat treatment
- Aluminum and copper homogenization
- Battery recycling thermal processes
- Industrial component conditioning
Safety & Reliability
- Over-temperature protection system
- Water cooling protection design
- Industrial-grade electrical cabinet
- Full-load testing before delivery
- CE & ISO certified manufacturing
