Technical Parameters
| Item | Specification |
|---|---|
| Product Name | High Temperature Vacuum Controlled Atmosphere Quenching Furnace |
| Brand | WOLFU |
| Furnace Type | Vacuum Controlled Atmosphere Quenching Furnace |
| Usage | Quenching |
| Type | Resistance Furnace |
| Material | Steel |
| Working Temperature | 1250°C |
| Max Temperature | 1320°C |
| Max Vacuum | 4×10-1 Pa |
| Voltage | 380V |
| Control | PID Auto or PLC |
| Core Components | PLC |
| Heating Elements | Graphite Heater |
| Heating Rate | 20°C/min Max |
| Dimension (L×W×H) | As per Order / Customized |
| Weight | 0.5 T |
| Certification | CE |
| Warranty | 1 Year |
| Machinery Test Report | Not Available |
| Video Outgoing Inspection | Provided |
| Key Selling Points | Accurate Temperature Control, Long Service Life |
| Place of Origin | Henan, China |
| Specification | Details |
|---|---|
| Furnace Structure | Single Chamber, Horizontal |
| Furnace Door Closing Mode | Fast Tightening by Hinge and Gear Ring, Pneumatic Driving |
| Chamber Size | 450×300×300 mm (L×W×H), Other Sizes Can Be Customized |
| Max Loading Capacity | 80 kg (Including Tooling) |
| Working Temperature in Vacuum | 500–1250°C |
| Ultimate Vacuum Level | 4×10-1 Pa |
| Working Vacuum Level | 4 Pa |
| Pressure Rise Rate | ≤3 Pa/h |
| Pumping Speed to Working Vacuum | ≤20 min |
| Partial Pressure Range | 10–800 Pa |
| Max Inner Pressure | ≤6 bar |
| Cooling Speed | 1200°C to 300°C in 5 min |
| Cooling Fan Power | 45 kW |
| Total Power | 125 kVA |
| Rated Heating Power | 80 kW |
| Cooling Water Inlet Temperature | 20–32°C |
| Cooling Water Pressure | 0.2–0.3 MPa |
| Cooling Gas | N2 / Ar, Purity Over 99.99% |
| Compressed Air Pressure | 0.4–0.6 MPa |
| Total Weight | Approx. 3 Tons |
| Floor Area | Approx. 20 m³ |
| Control System | Programmable Auto Single-Zone Temperature Control, Full-Automatic / Manual, Air Cooling / Natural Cooling |
| Model | Chamber Size (mm) | Max Temp (°C) | Capacity (kg) | Temperature Uniformity (°C) | Power (kW) | Ultimate Vacuum |
|---|---|---|---|---|---|---|
| BR-QCL-334 | 300×300×450 | 1320 | 80 | ±5 | 125 | 4×10-1 |
| BR-QCL-446 | 400×400×600 | 1320 | 200 | ±5 | 145 | 4×10-1 |
| BR-QCL-557 | 500×500×700 | 1320 | 300 | ±5 | 190 | 4×10-1 |
| BR-QCL-669 | 600×600×900 | 1320 | 500 | ±5 | 282 | 4×10-1 |
Product Details

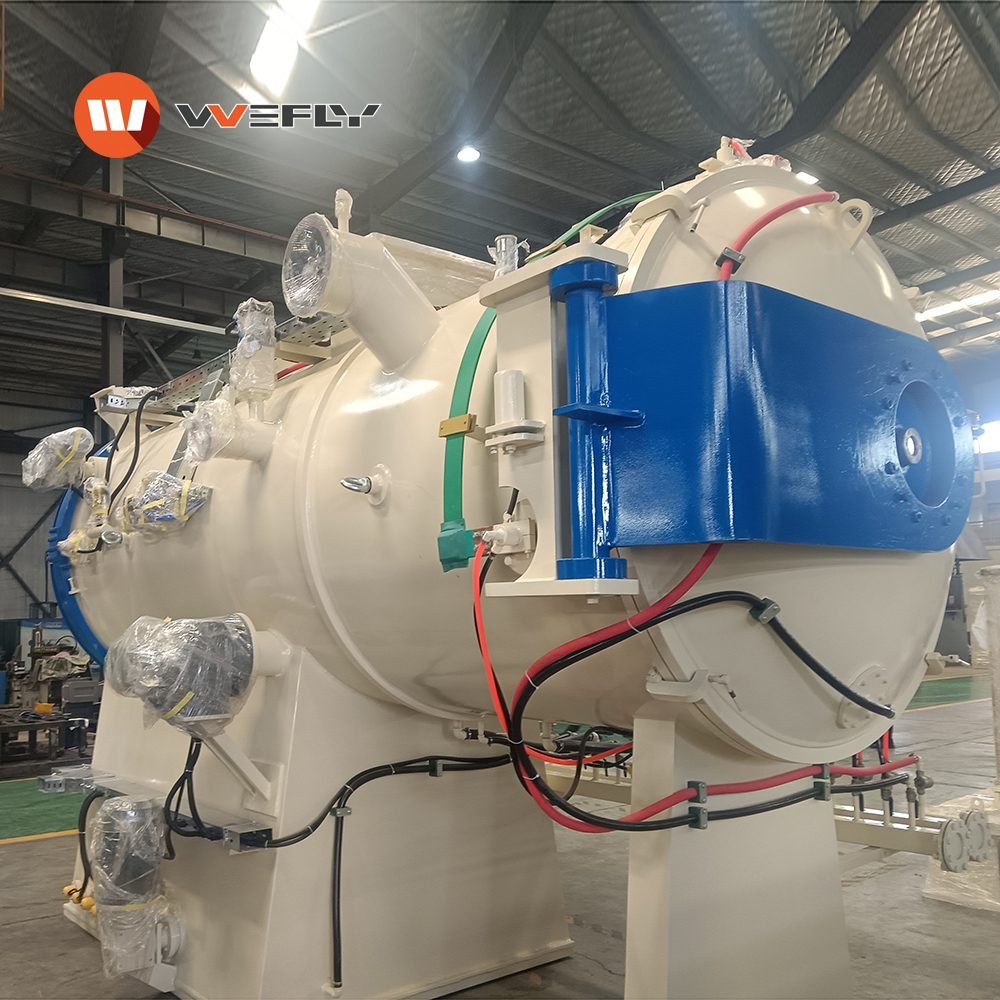

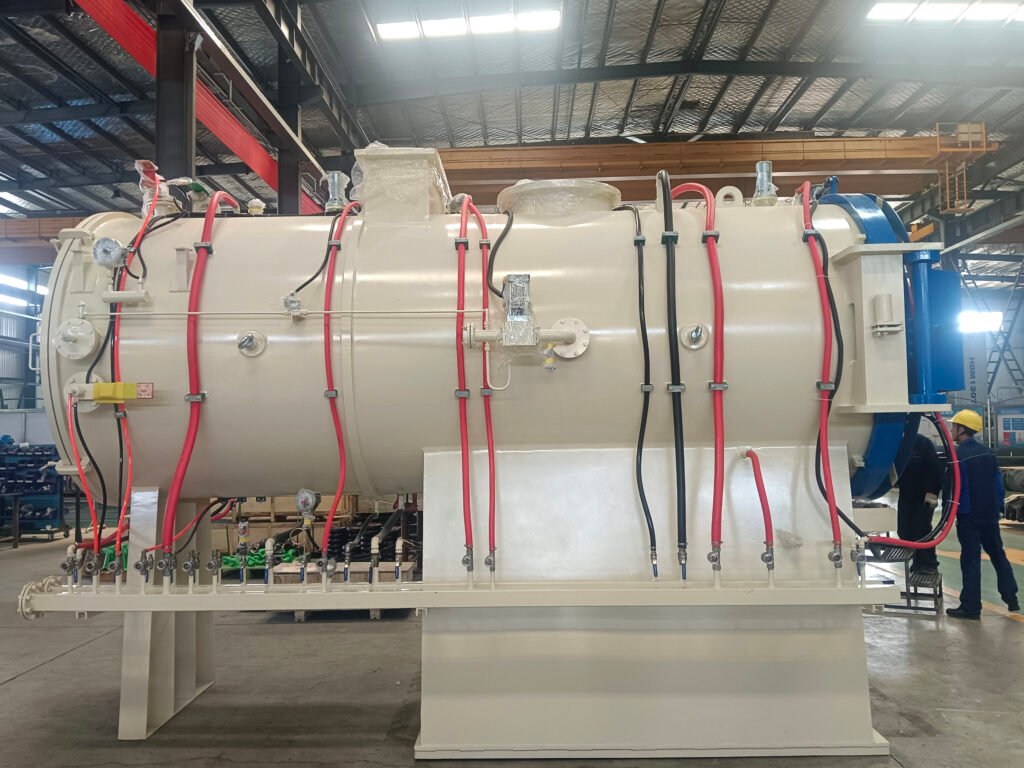

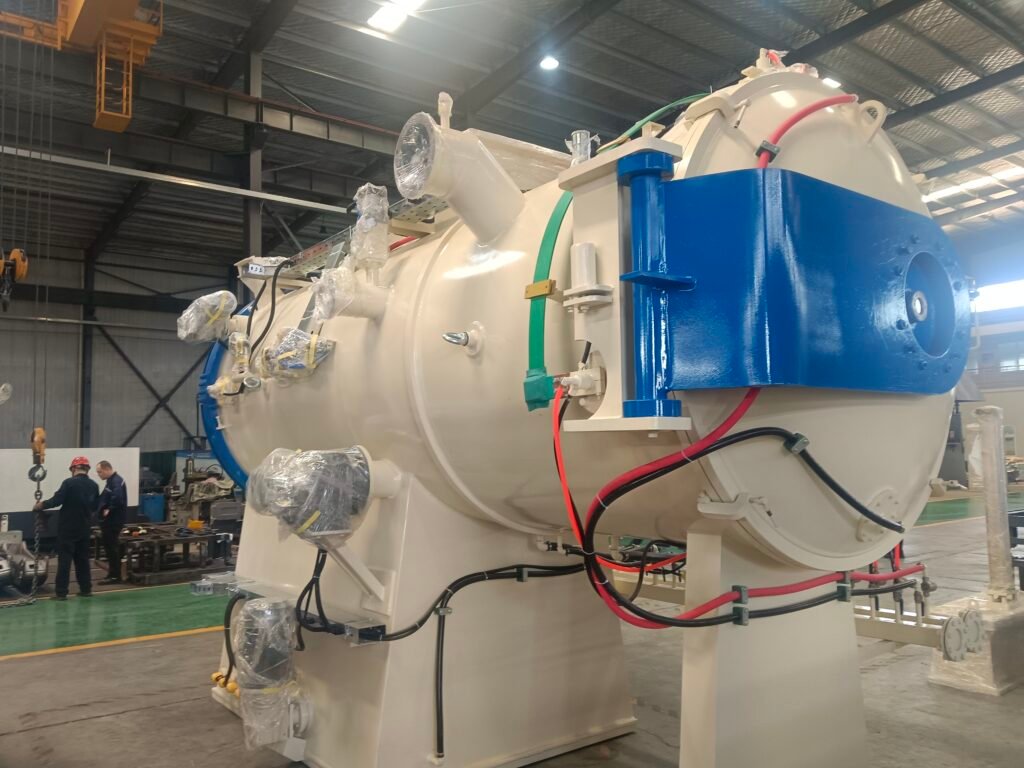

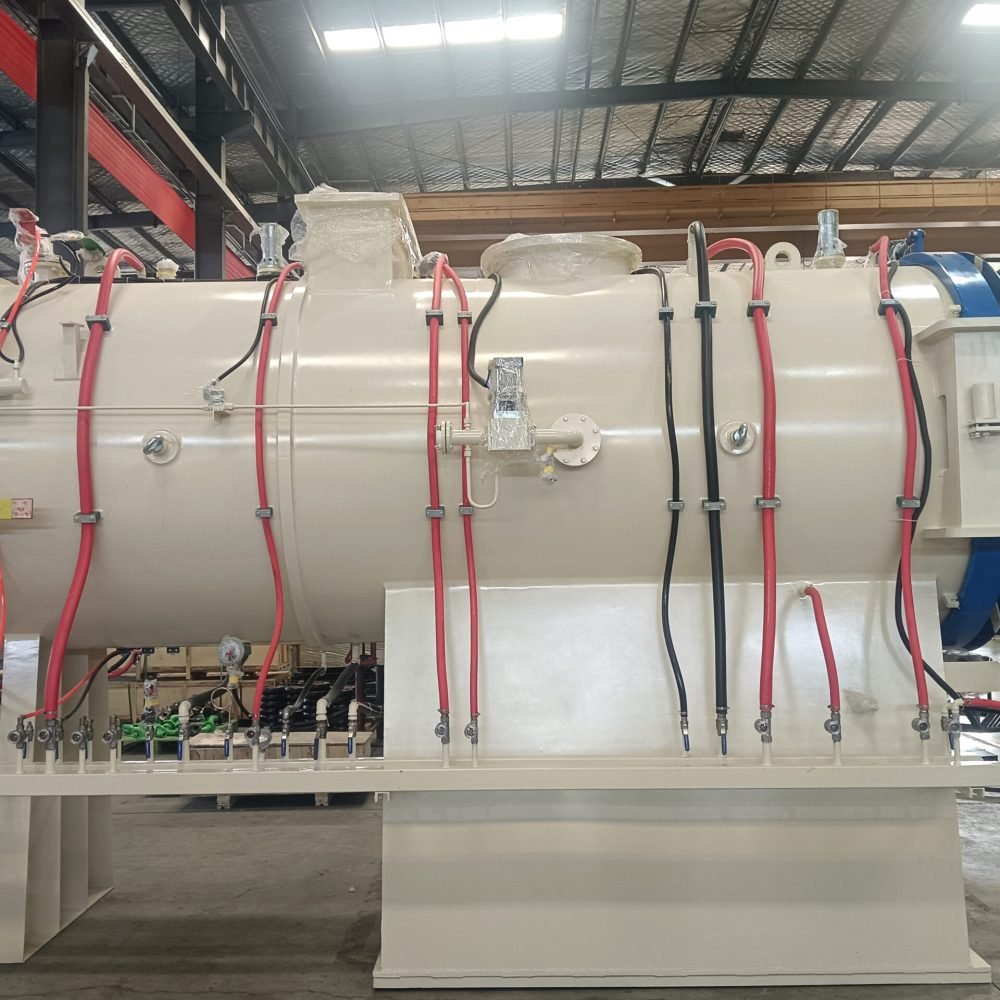

WOLFU high temperature vacuum controlled atmosphere quenching furnace is designed for precision heat treatment applications requiring accurate temperature control, high vacuum performance, and uniform gas cooling. This furnace is suitable for quenching, annealing, tempering, brazing, and related thermal processes in aerospace, aviation, automotive, electronics, machinery manufacturing, and other high-end industrial fields.

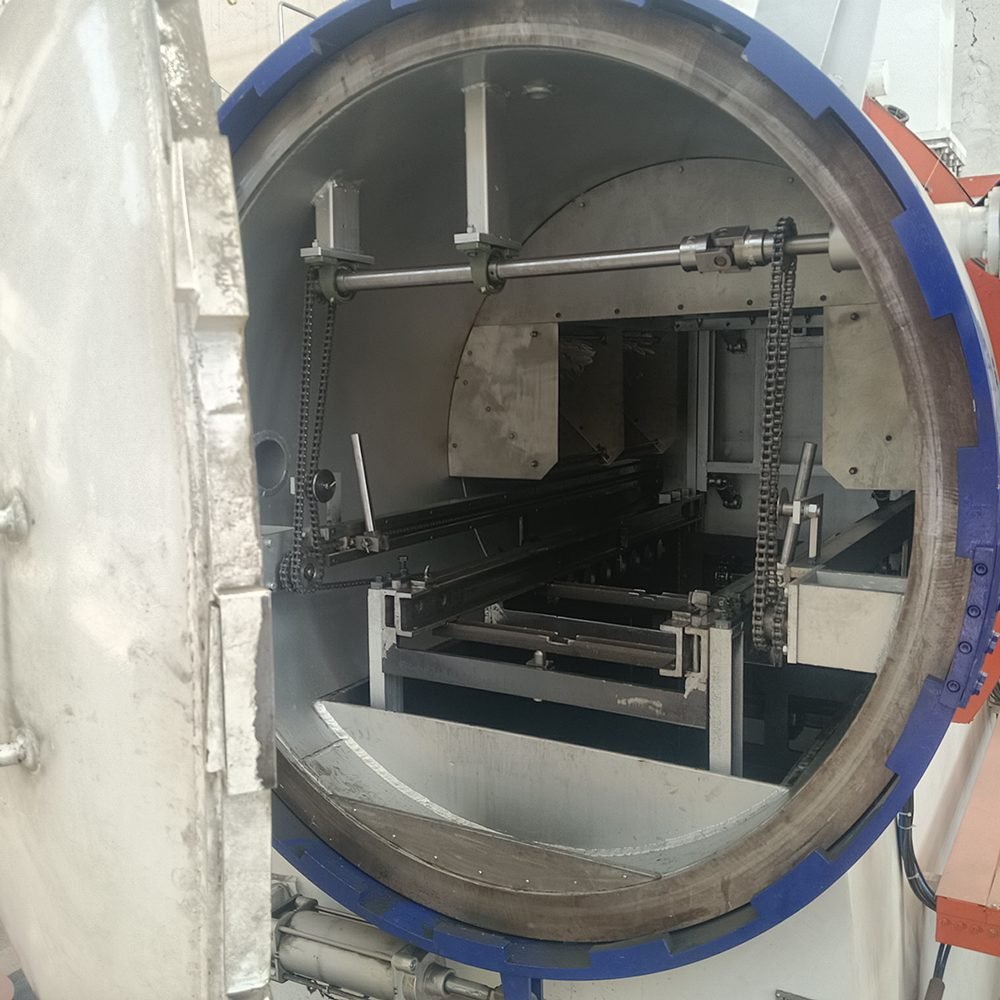

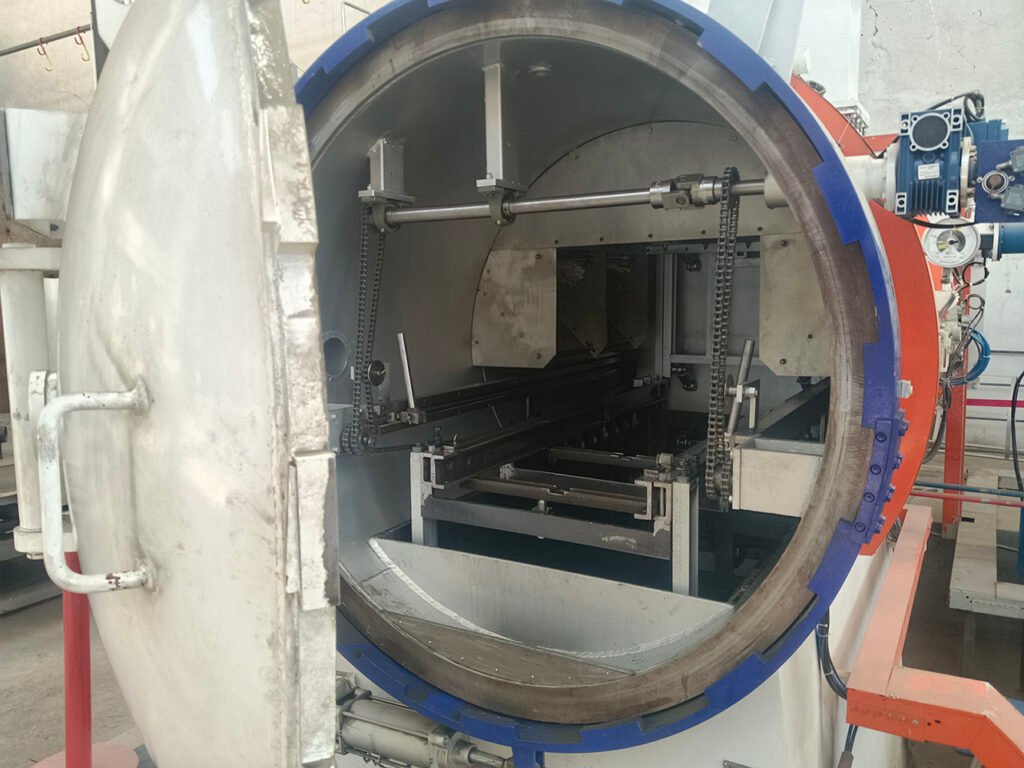

The furnace is mainly composed of a furnace shell, graphite heating chamber, vacuum system, cooling system, and control system. The heating chamber uses graphite heater, graphite soft felt, and hard felt materials to provide stable high-temperature operation, with a maximum furnace temperature of 1320°C and working temperature up to 1250°C.
During gas quenching, high-purity nitrogen or argon is introduced into the system and distributed through multiple graphite spray nozzles inside the heating chamber. Combined with the high-pressure blower, copper heat exchanger, and duct deflector structure, the furnace achieves uniform cooling of the workpiece and stable quenching performance.

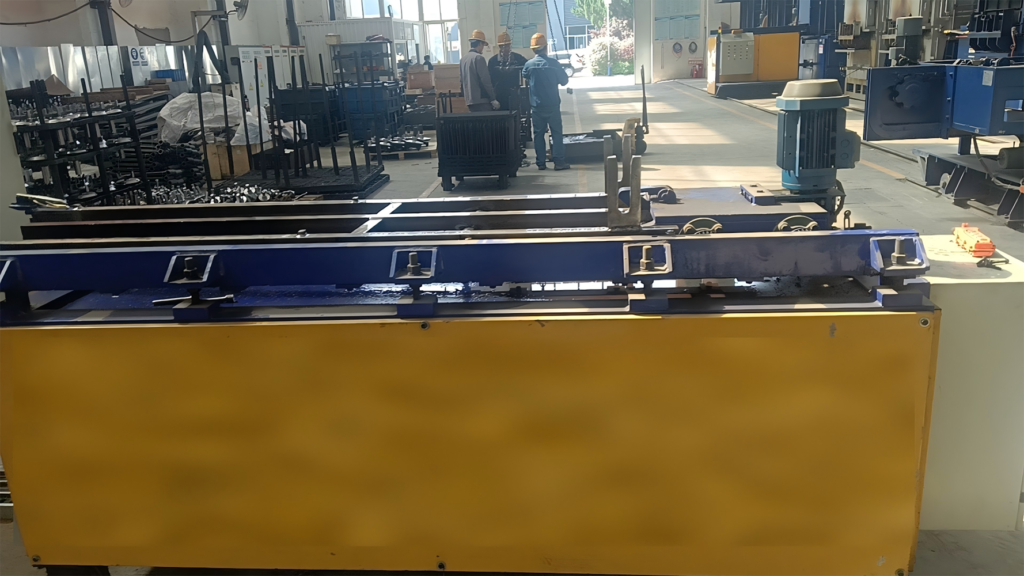

The material platform is composed of graphite support, hearth, and Al2O3 stickers, which helps prevent adhesion between the platform and the hearth under high-temperature conditions. The furnace can also be configured with optional features such as a stirring fan for low-temperature stirring and a valve heat exchanger for venting at any temperature.
WOLFU can provide both standard and customized vacuum quenching furnace solutions according to chamber size, loading capacity, temperature range, cooling requirements, and process demands. The system supports PID automatic control or PLC control and can be adapted for different industrial heat treatment projects.
