If you are searching for a brass rod continuous casting machine, a horizontal continuous casting line, or a complete brass rod making machine for a new plant — this page gives you a reference. The WOLFU horizontal continuous casting line is a medium-frequency induction holding-casting furnace, a servo traction unit, a synchronous flying cutter and an in-line draw-polishing (skin-pass) station — which blocks every modern brass-rod production line shares. The default diameter window of a 500X750 horizontal continuous casting line is Ø8 mm to Ø75 mm at 8–15 t/day, exactly the sweet spot most mid-capacity buyers ask us about.

1.  Why a Horizontal Continuous Casting Line?

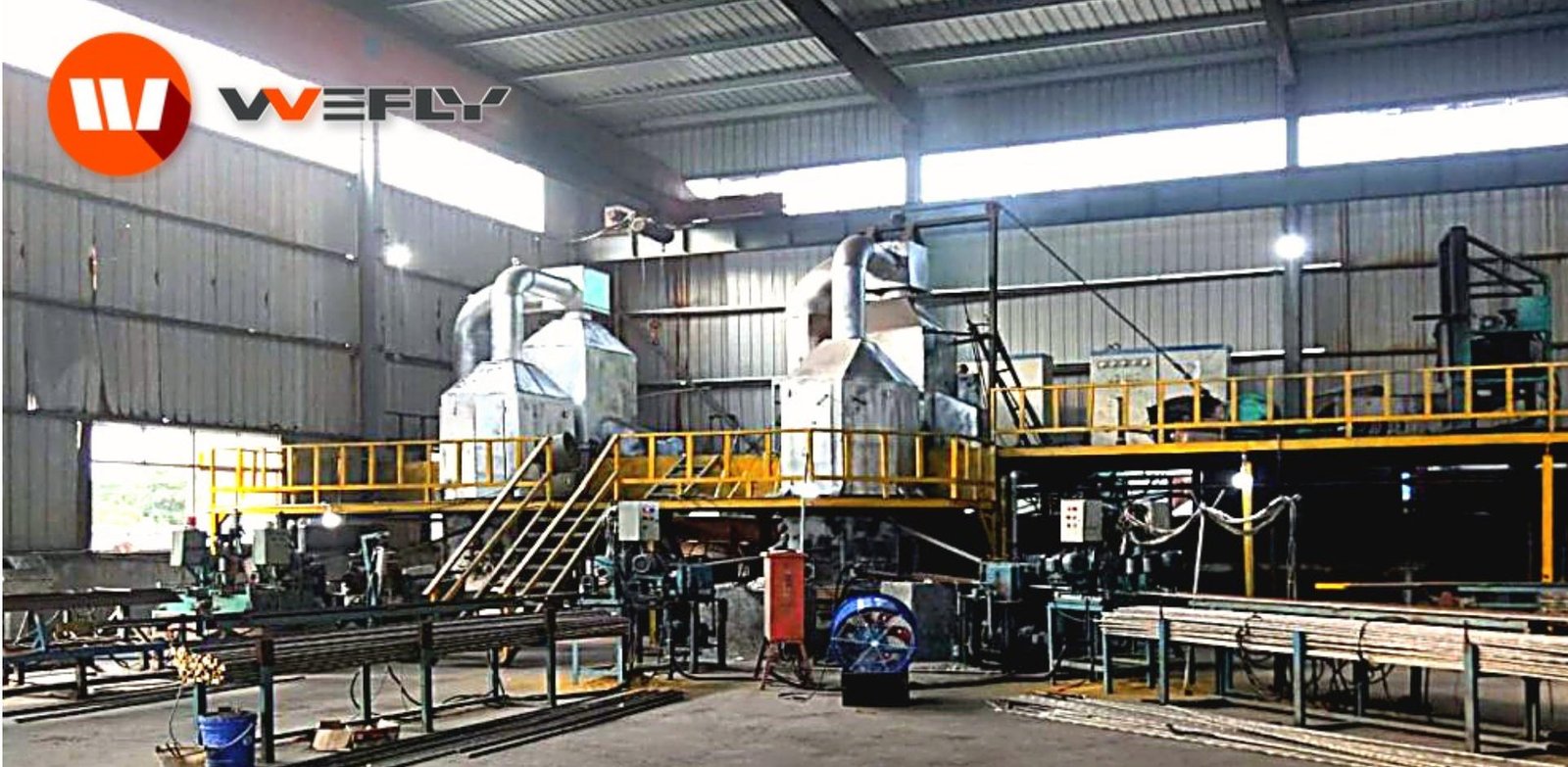

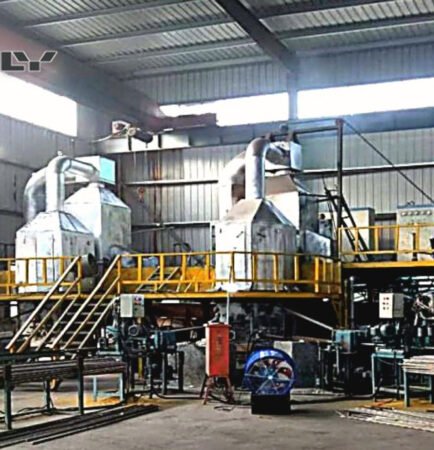

A horizontal continuous casting line is the standard choice for any brass rod production line serving the forging, plumbing, valve or electrical components market. Compared with vertical or semi-continuous casting, the HCC layout shortens the floor footprint, removes the need for deep pits, and keeps the metal liquid only a few seconds before it enters the graphite crystallizer — which is why the rods come out with finer grain, lower centreline porosity and better surface finish.

Our complete horizontal continuous casting line has been shipped to several countires and regions since the early 2000s. If you are searching for brass rod continuous casting machine with a 500 kg or 750 kg holding furnace, the 500X750 platform is the size most new buyers choose.

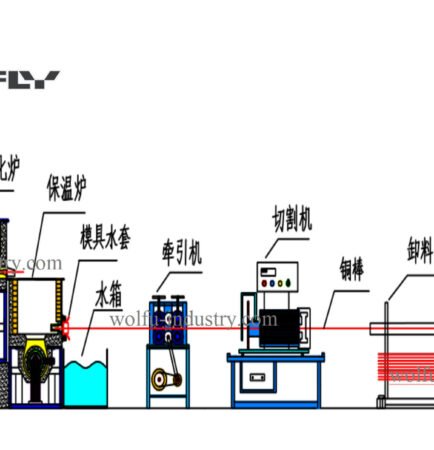

2.  What’s Inside the 500X750 Brass-Rod Horizontal Continuous Casting Line

The 500X750 brass rod making machine is delivered as four integrated stations.

• Melting & holding furnace (500kg holding-casting furnace). A medium-frequency induction furnace body integrated with a holding channel. Power 120 kW, adjustable down to 20 kW in six voltage taps, so the melt rate can match the alloy and rod size without re-tapping the transformer.
• Servo traction / pinch-roll unit. Dual-roller, frequency-controlled drive that pulls the rod out of the crystallizer at a steady speed — which fast enough for high-throughput and gentle enough not to tear the billet skin. Control is by Siemens PLC.
• Synchronous flying cutter. Hydraulic follow-cut saw with 0.6 m/s line speed. Optional length 1.5–6 m. Pair it with an in-line brass bar drawing and peeling machine if your downstream process wants bright surface.
• In-line draw-polishing (skin-pass) station. A two-die drawing unit used for surface brightening and final tolerance. Removes the oxide scale left by the water spray and gives the rod a bright drawbar finish — ready for direct hot forging.

3.  Core Specifications of the 500X750 Horizontal Continuous Casting Line

Below is the spec most buyers ask about first when they search for a brass rod horizontal continuous casting line price reference. Power supply, line speed and footprint are the three numbers plant owners usually cross-check with their own facility.

If you would like a side-by-side comparison with another China brass rod making machine supplier, send us their datasheet — we will return a 1-page competitiveness map within 48 hours.

4.  Alloys This Horizontal Continuous Casting Line for Brass Handles

Searching for a C36000 free-machining brass continuous casting machine, or a C26000 cartridge brass rod making machine, or a phosphor-bronze / aluminium-bronze rod line? The 500X750 brass rod continuous casting machine runs all of these without major hardware changeover:

• Brass for the hot-forging industry — C36000 (free-machining brass), C37700 (forging brass), C46400 (naval brass).  — most buyers searching for a brass rod continuous casting machine for forging land on this set of grades first.
• Brass for plumbing fittings, valves and electrical components — C26000 (cartridge brass), C27000 (yellow brass), C27200, C27400, C26200.  — these are the workhorses for any brass rod continuous casting machine in the plumbing-fittings supply chain.
• Phosphor bronze — C51000, C52100, C54400.  — typical target if you searched for a C51000 phosphor bronze rod casting machine.
• Aluminium bronze — C95400, C95500.  — for wear plates, marine parts and gears; your query C95400 aluminum bronze continuous casting maps straight to this section.
• Pure copper — T2 / C11000, TP2 / C12200.  — oxygen-free copper is available on request.
• Special alloys — Cu-Ni 90/10, Cu-Ni 70/30, Cu-Be master, low-lead (≤ 0.1 %) lead-free brass.  — running more than one of these on the same line is one of the WOLFU line’s differentiators.

5.  Five Reasons WOLFU’s China Brass Rod Making Machine Stands Out

• Modular furnace body. The melting + holding channel is cast as a single refractory-laminated block. Typical campaign life is well above the norm you see quoted on many other supplier lines.
• Real PLC, not a relay box. Siemens PLC, recipe-driven start-up. New operators are productive after a single shift. That makes this continuous casting machine for brass the lowest-training-overhead option in our catalogue.
• Six-tap holding transformer — wide alloy window. With 90 / 120 / 150 / 180 / 210 / 250 / 300 V taps, the same brass rod production line can run a copper melt in the morning and a C36000 free-machining brass melt in the afternoon.
• kWh per ton on the HMI. Energy use is a live KPI on the operator dashboard. Customers retrofitting from older lines can see a specific-energy reduction after the first three months of fine tuning.
• Spare parts. WOLFU keeps wear parts — graphite crystallizer, induction coils, hydraulic seals, PLC cards — in stock at our Luoyang facility.

6.  Ask WOLFU for a Brass-Rod Production Line Quote

Tell us your target alloy, your rod diameter range, and your daily tonnage. We will come back with a preliminary layout and a bill of materials — exactly what you need to compare this brass rod horizontal continuous casting line with the alternatives you are evaluating.
