Technical Parameters
| Item | Specification |
|---|---|
| Product Name | Horizontal Copper Rod Continuous Casting Machine with Melting Furnace |
| Brand | WOLFU |
| Machine Type | Continuous Casting Machine |
| Application | Casting Industry |
| Raw Material | Copper Cathode |
| Final Product | Copper Rod, Brass Rod, Copper Alloy Products |
| Voltage | 380V |
| Power | 500–3200 KW (Customized) |
| Dimension (L×W×H) | 2000 × 1000 × 1200 mm |
| Core Components | Motor, Pressure Vessel, Gear |
| Feature | High Efficiency |
| Advantage | Low Energy Consumption |
| Output | 4–6 Seconds |
| Capacity | 3000–12000 Tons/Year |
| Certification | ISO9001 |
| Machinery Test Report | Provided |
| Video Outgoing Inspection | Provided |
| Warranty | 1 Year |
| After-sales Service | Free Spare Parts, Field Installation, Commissioning and Training, Field Maintenance and Repair Service, Video Technical Support, Online Support |
| After Warranty Service | Video Technical Support, Online Support, Spare Parts, Field Maintenance and Repair Service |
| Place of Origin | Henan, China |
| Name | Unit | Parameter |
|---|---|---|
| Casting Type | – | 2, 4, 6 |
| Casting Material | – | Lead Brass, Copper, Copper Alloy |
| Casting Specification | mm | Φ12~Φ80, Φ120, Φ140, Φ180, Φ200 |
| Casting Speed | mm/min | 60~700 |
| Equipment Power | KW | 550 |
| Production Capacity | ton/year | 4000 |
| Maximum Operating Temperature of Furnace Unit | °C | 1300 |
| Temperature Difference Control Range of Holding Furnace | °C | ±10 |
| Unit Noise | db | ≤80 |
Product Details
WOLFU horizontal copper rod continuous casting machine with melting furnace is designed for efficient copper melting and continuous casting in the foundry and non-ferrous metal processing industry. The system is suitable for producing long, bright copper rods and related copper alloy products with stable quality and high production efficiency.

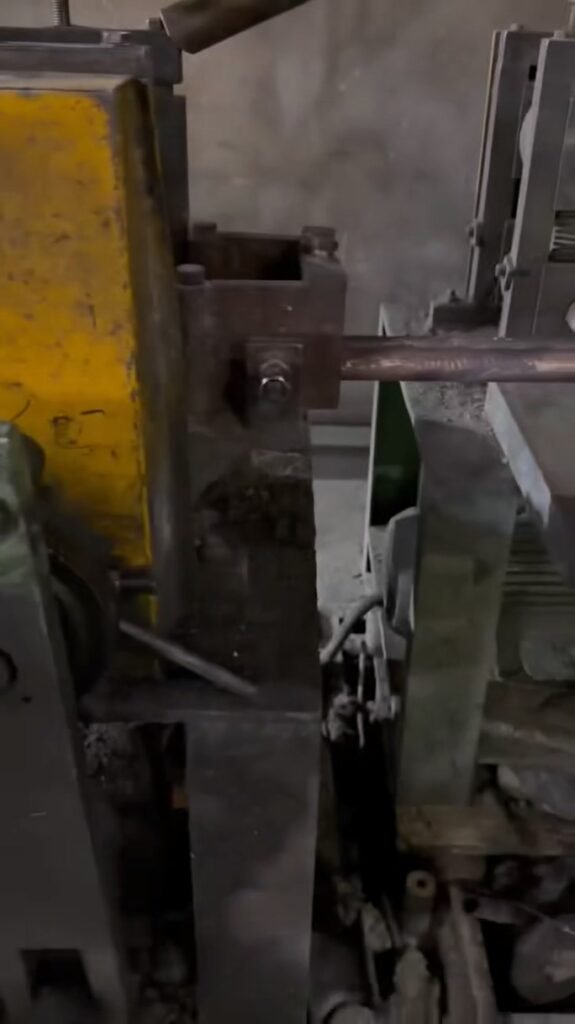

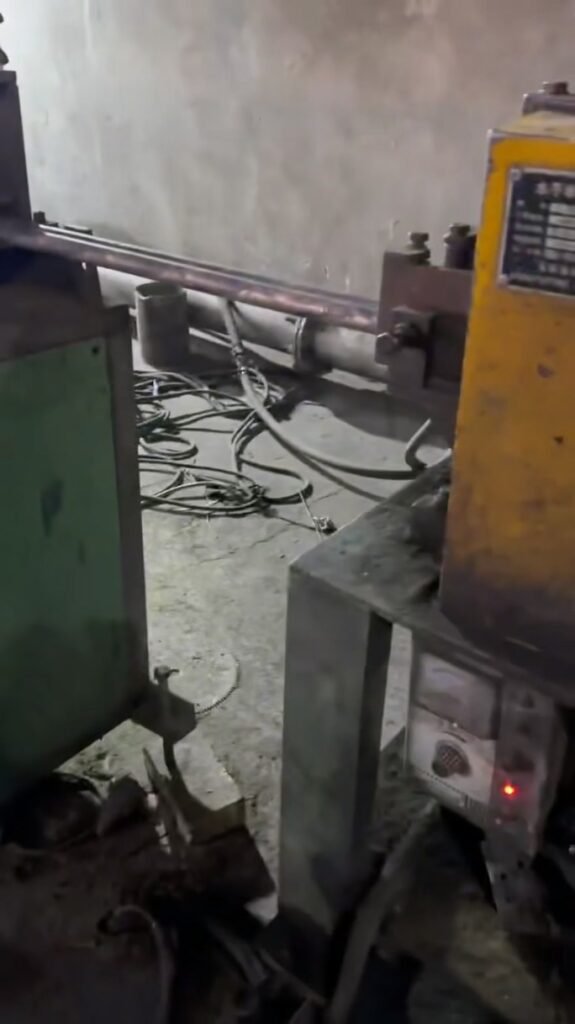

This production unit is mainly composed of an induction melting furnace, continuous casting machine, regulating wheel frame, tension device, twin-head take-up machine, water cooling system, electrical control system, feeding system, and temperature measuring system. It provides a complete process solution from copper cathode melting to continuous rod casting and final collection.

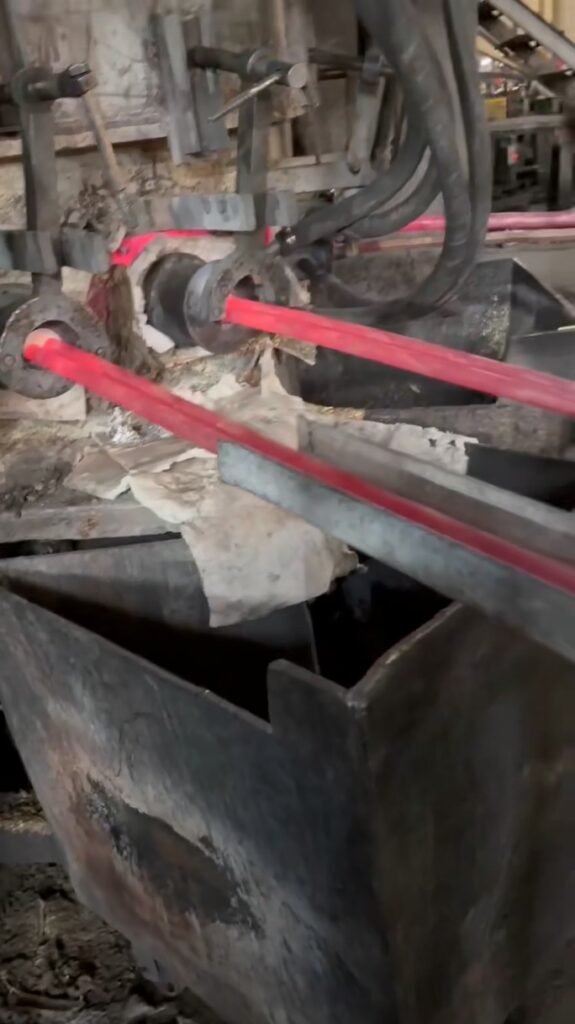

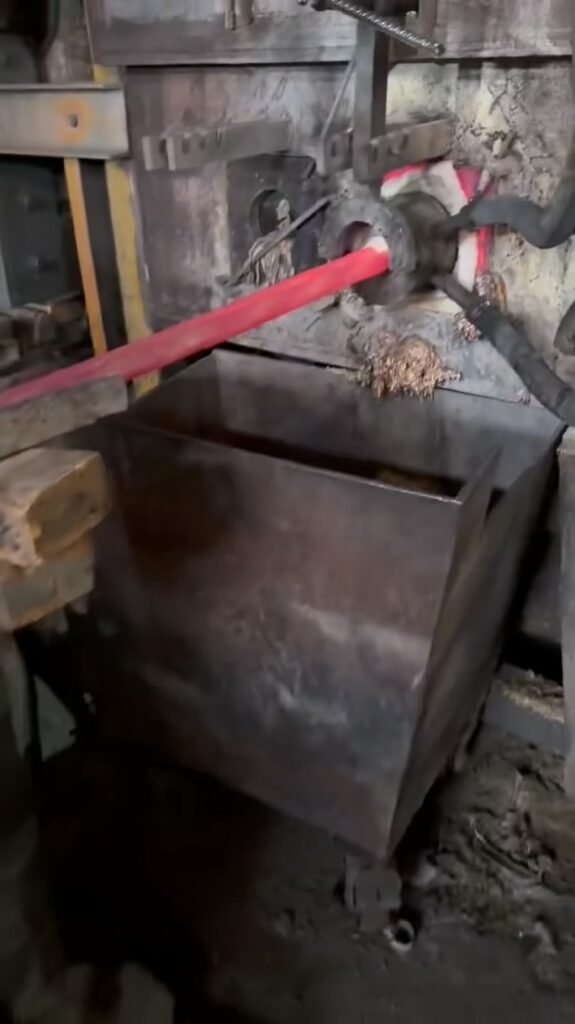

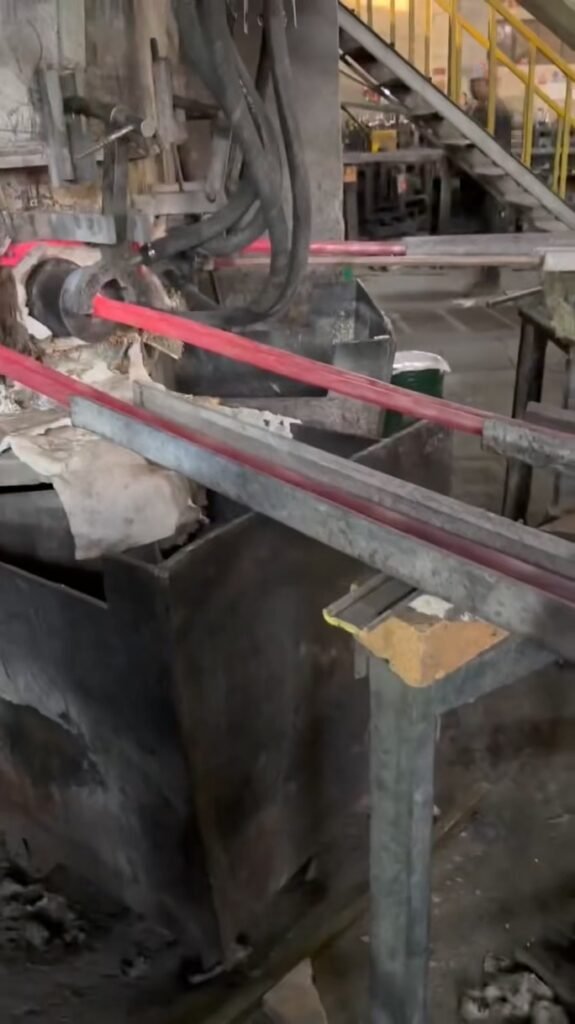

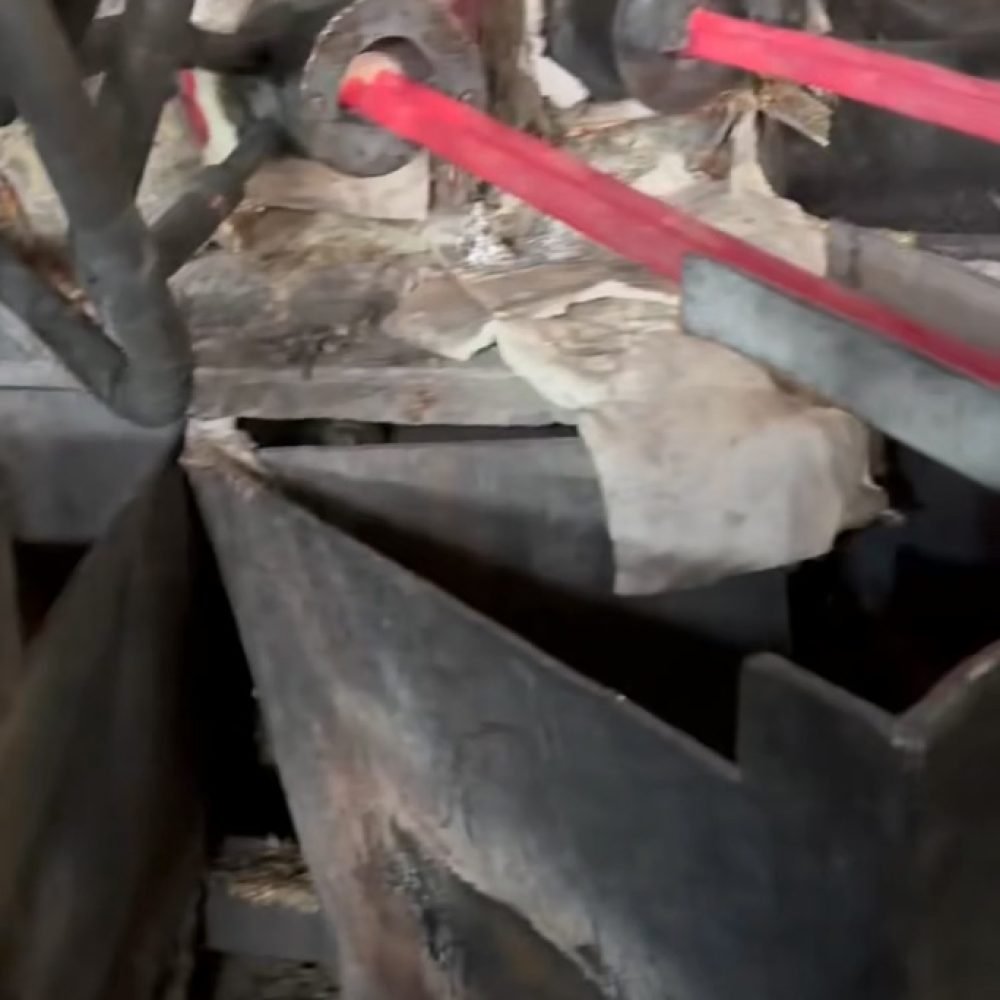

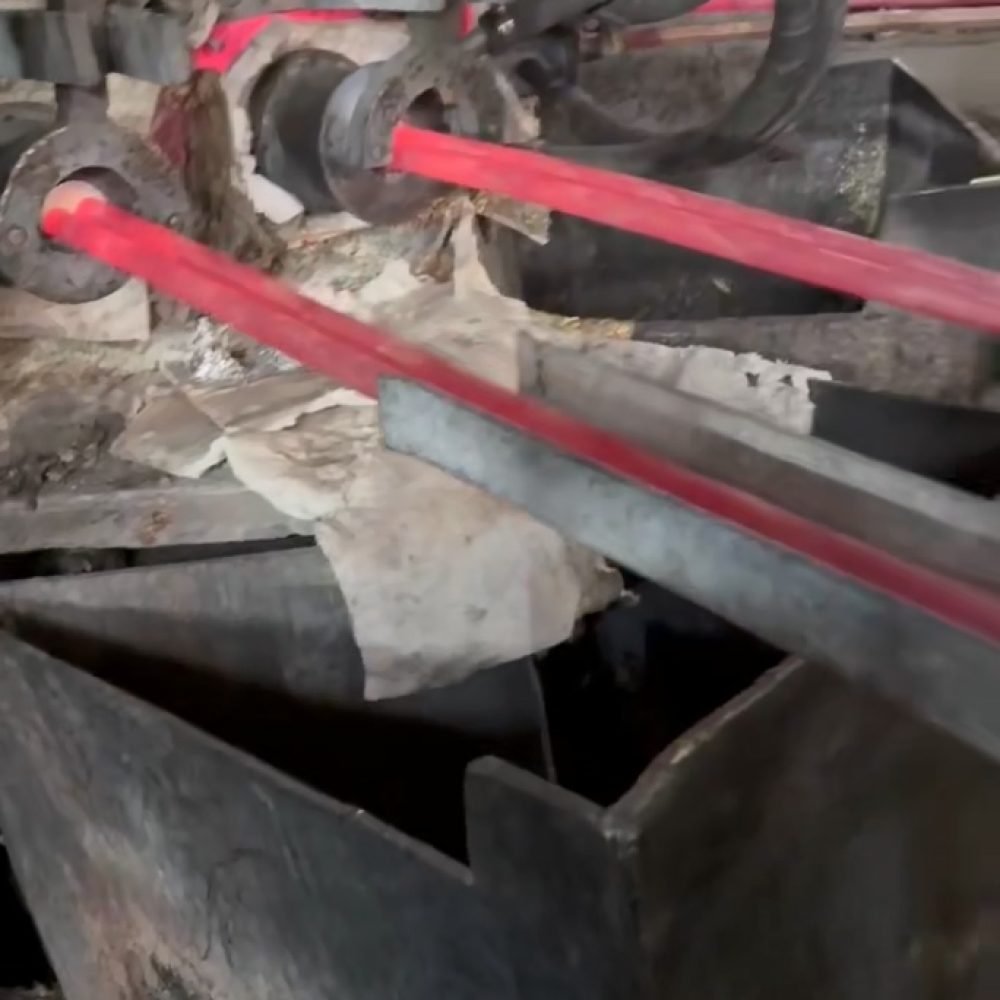

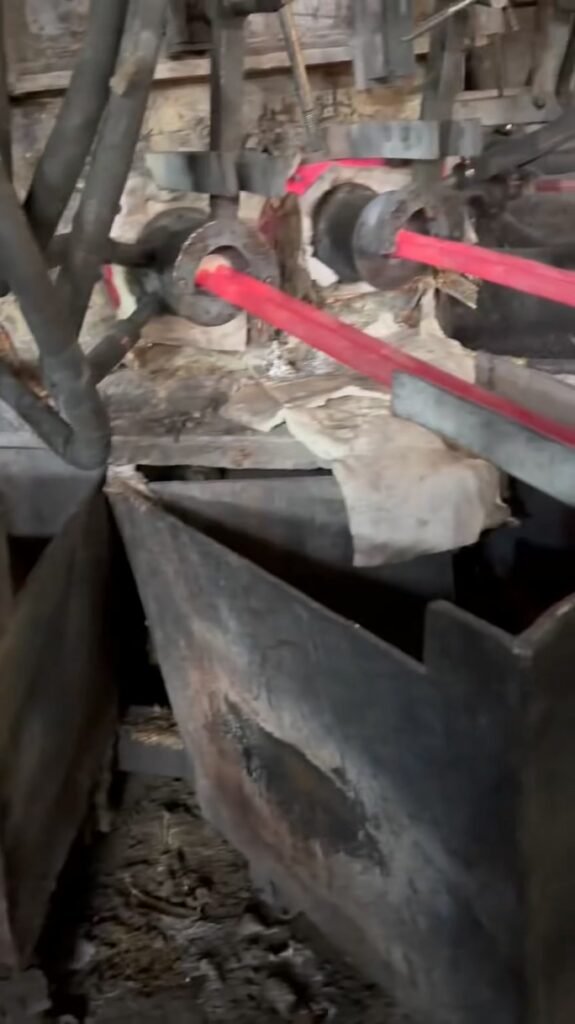

During operation, copper cathodes are melted in the induction furnace and the molten copper is protected from oxidation through charcoal or graphite covering. The holding furnace keeps the copper liquid at a stable temperature of about 1150°C ±10°C, while the casting machine continuously crystallizes the molten copper through a water-cooled copper mold to produce finished copper rods.
This equipment is suitable for copper, brass, copper alloy, and selected non-ferrous casting applications. It is designed with high efficiency, low energy consumption, stable control, and easy maintenance, making it suitable for continuous industrial production.
WOLFU can provide customized solutions according to customer requirements such as rod diameter, annual output, casting speed, raw material type, and workshop layout. The system can also be integrated with automatic control and auxiliary collection equipment for more reliable production performance.
Service & Support
WOLFU provides complete copper rod continuous casting solutions for customers in the non-ferrous metal casting and copper processing industry. We understand that production stability, energy efficiency, and reliable technical support are essential for continuous casting projects, so we offer practical service support from equipment selection to long-term operation.
- Customized Equipment Solutions: We can recommend suitable casting configurations based on rod diameter, casting speed, annual output, and raw material conditions.
- Process Integration Support: WOLFU can provide complete solutions including melting furnace, holding furnace, continuous casting unit, take-up system, cooling system, and electrical control system.
- Automatic Control Support: The production line can realize full-line automatic control with PLC programmable control, process parameter pre-setting, and position feedback functions.
- Stable Technical Performance: Siemens PLC and Siemens touch screen can be configured for better control accuracy and convenient operation.
- Installation and Commissioning: We provide field installation, commissioning, operator training, and related technical guidance.
- After-sales Support: WOLFU offers free spare parts during the warranty period, lifetime technical support, online support, video technical assistance, and field maintenance service when needed.
