Vacuum Controlled Atmosphere Quenching Furnace for Precision Heat Treatment
A Vacuum Controlled Atmosphere Quenching Furnace is used for precision heat treatment processes such as quenching, annealing, tempering, and brazing.
For aerospace, automotive, electronics, machinery manufacturing, and advanced metal processing industries, stable temperature control, reliable vacuum performance, and uniform gas cooling are critical for consistent workpiece quality.
🔵 View WOLFU Vacuum Controlled Atmosphere Quenching Furnace

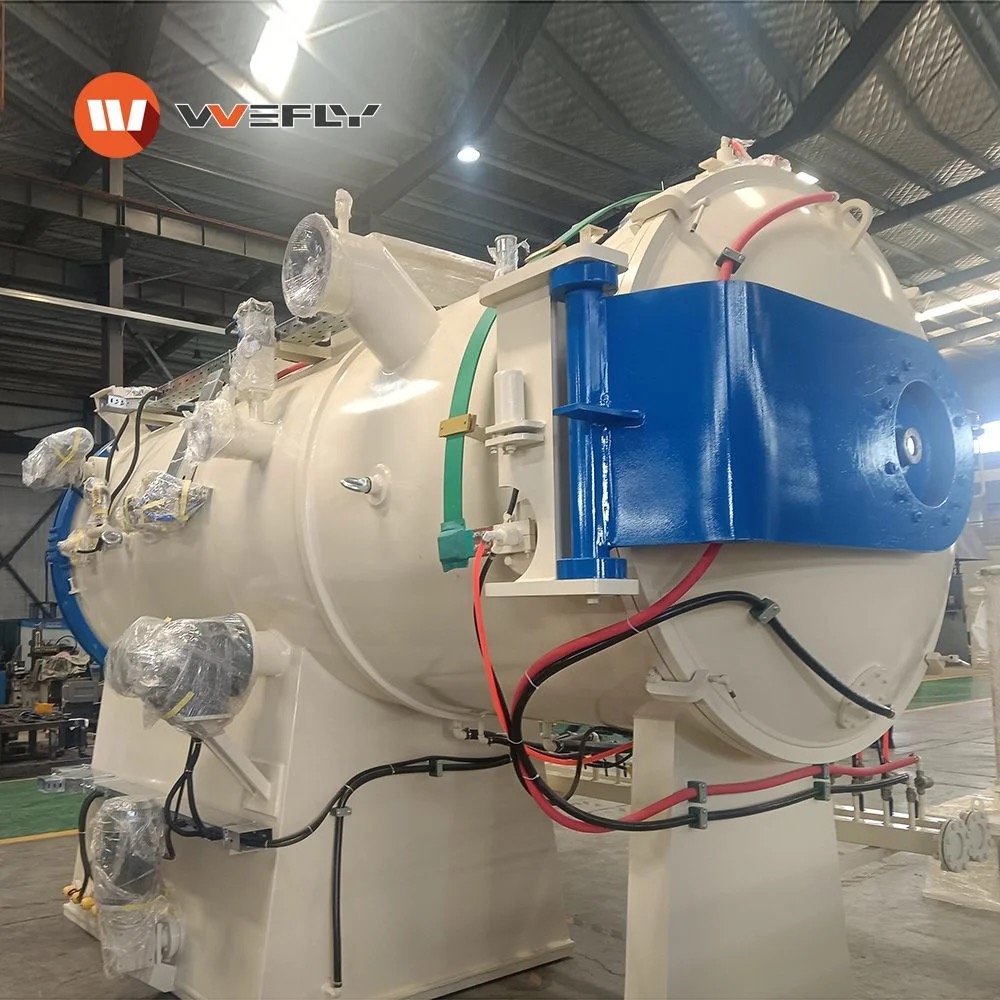

The WOLFU High Temperature Vacuum Controlled Atmosphere Quenching Furnace uses a single-chamber horizontal structure, graphite heating system, vacuum system, gas cooling system, and automatic control system to support demanding industrial heat treatment applications.
Key Specifications
| Feature | Specification | Benefit |
|---|---|---|
| Product Name | High Temperature Vacuum Controlled Atmosphere Quenching Furnace | Precision vacuum heat treatment solution |
| Brand | WOLFU | Industrial furnace manufacturer |
| Furnace Type | Vacuum Controlled Atmosphere Quenching Furnace | Suitable for controlled vacuum heat treatment |
| Usage | Quenching, Annealing, Tempering, Brazing | Supports multiple thermal processes |
| Structure | Single Chamber, Horizontal | Practical industrial operation layout |
| Heating Element | Graphite Heater | Stable high-temperature heating performance |
| Working Temperature | 1250℃ | Suitable for precision heat treatment |
| Maximum Temperature | 1320℃ | Supports high-temperature processes |
| Vacuum Working Temperature | 500–1250℃ | Wide vacuum process range |
| Ultimate Vacuum Level | 4×10-1 Pa | Supports clean vacuum treatment |
| Working Vacuum Level | 4 Pa | Stable process vacuum condition |
| Pressure Rise Rate | ≤3 Pa/h | Indicates good vacuum holding performance |
| Pumping Speed | ≤20 min to working vacuum | Improves production efficiency |
| Cooling Gas | N₂ / Ar, purity over 99.99% | Supports clean and uniform gas quenching |
| Cooling Speed | 1200℃ to 300℃ in about 5 min | Supports fast controlled quenching |
| Standard Chamber Size | 450 × 300 × 300 mm | Custom sizes available |
| Max Loading Capacity | 80 kg including tooling | Suitable for small and medium batch heat treatment |
| Control System | PID Auto or PLC | Supports automatic process control |
| Certification | CE | Supports industrial project purchasing |
| Warranty | 1 Year | Supports after-sales planning |
Heat Treatment Process
Step 1: Workpiece Loading
Metal workpieces are placed on the graphite support platform inside the vacuum chamber according to the required loading plan.
Step 2: Vacuum Pumping
The vacuum system reduces chamber pressure to the required working vacuum level, helping create a cleaner heat treatment environment.
Step 3: Controlled Heating
The graphite heating system raises the furnace temperature according to the programmed heat treatment curve.
Step 4: Temperature Holding
The furnace holds the workpieces at the required temperature to support uniform thermal processing.
Step 5: Gas Quenching
High-purity nitrogen or argon is introduced into the furnace and distributed through internal nozzles for uniform gas cooling.
Step 6: Cooling and Unloading
After the workpieces cool to the required temperature, the furnace can be opened for unloading and downstream inspection.
🔵 Request a Quote for WOLFU Vacuum Controlled Atmosphere Quenching Furnace
Main Advantages
Accurate Temperature Control
The furnace supports PID automatic control or PLC programmable control, helping maintain stable heating curves and repeatable process quality.
Stable Vacuum Performance
With an ultimate vacuum level of 4×10-1 Pa and working vacuum level of 4 Pa, the system is suitable for controlled vacuum heat treatment processes.
Uniform Gas Cooling
High-purity nitrogen or argon is introduced through multiple graphite spray nozzles, helping improve cooling uniformity during gas quenching.
Fast Cooling Capability
Under standard conditions, the furnace can cool from 1200℃ to 300℃ in about 5 minutes, depending on process setup and cooling pressure.
Customizable Chamber Design
The standard chamber size is 450 × 300 × 300 mm, and other chamber sizes can be customized based on workpiece size, loading capacity, and process requirements.
Multiple Heat Treatment Applications
The furnace can be used for quenching, annealing, tempering, brazing, and other controlled atmosphere vacuum thermal processes.
Suitable Applications
- Vacuum quenching
- Controlled atmosphere annealing
- Vacuum tempering
- Vacuum brazing
- Aerospace component heat treatment
- Automotive precision parts
- Electronics component processing
- Machinery manufacturing
- High-end industrial thermal processing
Related WOLFU Equipment
For vacuum metal melting applications, review:
🔵 WOLFU Industrial Vacuum Induction Melting Furnace
For large metal workpiece annealing, review:
🔵 WOLFU Trolley Annealing Furnace
For industrial furnace cooling support, review:
🔵 WOLFU Closed Water Cooling Tower
Why Choose WOLFU?
WOLFU provides vacuum heat treatment furnaces, induction melting furnaces, annealing furnaces, cooling systems, recycling equipment, and customized metallurgical solutions.
For vacuum controlled atmosphere quenching projects, WOLFU can recommend suitable chamber size, loading capacity, temperature range, vacuum system, cooling gas configuration, control system, and plant layout based on customer process requirements.
Conclusion
A Vacuum Controlled Atmosphere Quenching Furnace is a reliable solution for precision heat treatment where clean atmosphere, accurate temperature control, stable vacuum, and uniform cooling are required.
The WOLFU furnace supports 1320℃ maximum temperature, 500–1250℃ vacuum working temperature, 4×10-1 Pa ultimate vacuum, 4 Pa working vacuum, high-purity N₂ / Ar gas cooling, and fast cooling from 1200℃ to 300℃ in about 5 minutes.
If your company needs equipment for vacuum quenching, annealing, tempering, brazing, or precision thermal processing, WOLFU can provide a customized furnace solution.
🔵 Get a Quote for WOLFU Vacuum Controlled Atmosphere Quenching Furnace
FAQ
What heat treatment processes can this furnace perform?
It can be used for quenching, annealing, tempering, brazing, and other controlled atmosphere vacuum heat treatment processes.
What is the maximum temperature?
The maximum furnace temperature is 1320℃, and the working temperature in vacuum is 500–1250℃.
What cooling gas does the furnace use?
The furnace can use high-purity nitrogen or argon, with gas purity over 99.99%.
How fast can the furnace cool?
Under standard conditions, it can cool from 1200℃ to 300℃ in about 5 minutes, depending on process setup and cooling pressure.
Can the chamber size be customized?
Yes. WOLFU can customize chamber size, loading capacity, cooling configuration, and control system according to customer process requirements.
