Polysilicon Ingot Casting Furnace for Solar Battery Material Production
A Polysilicon Ingot Casting Furnace is used for melting and directional solidification of polycrystalline silicon materials.
For solar battery material production, stable temperature control, high vacuum performance, and controlled crystallization are important for producing usable silicon ingots.
🔵 View WOLFU Polysilicon Ingot Casting Furnace

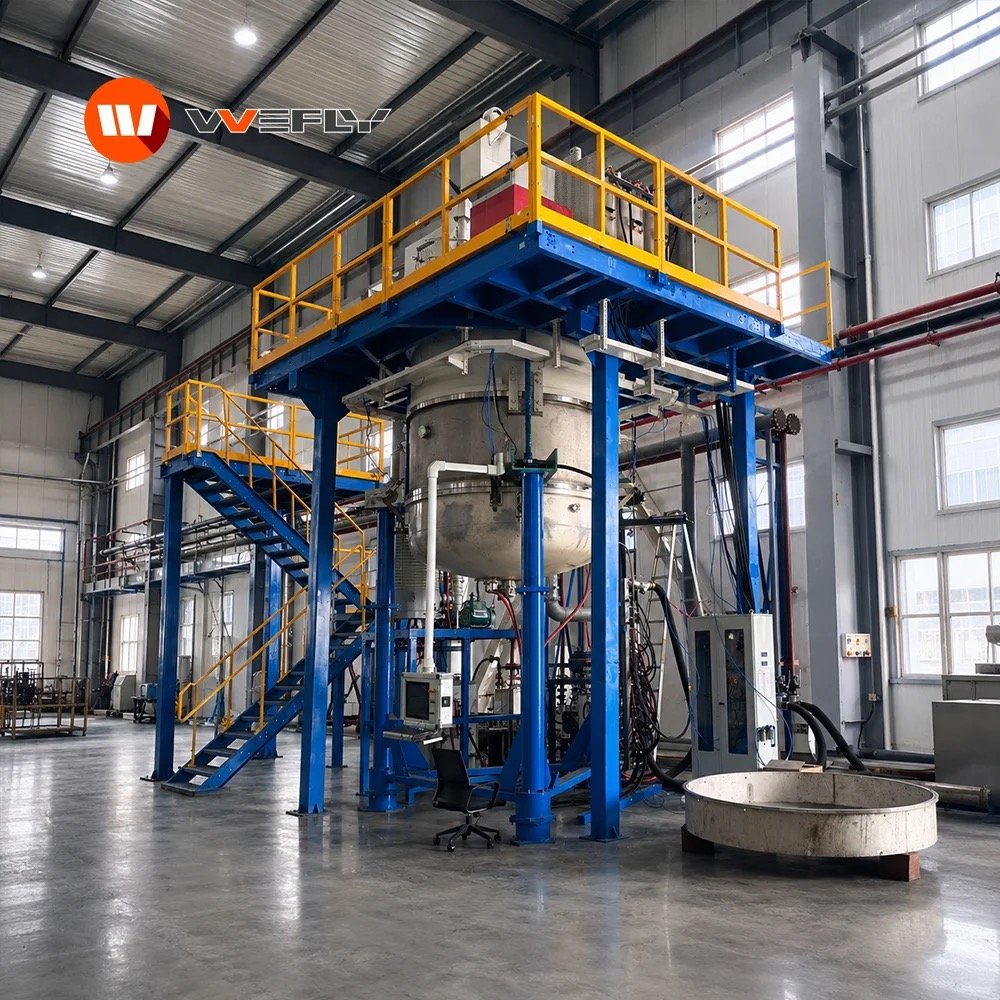

The WOLFU Polysilicon Ingot Casting Furnace is designed for photovoltaic silicon processing, solar material production, and small-scale polysilicon ingot casting projects.
Key Specifications
| Feature | Specification | Benefit |
|---|---|---|
| Product Name | Polysilicon Polycrystalline Silicon Ingot Casting Furnace | Solar silicon ingot production |
| Application | Solar Battery Material Production | Suitable for PV material processing |
| Voltage | 380V | Industrial power configuration |
| Power | 100KW | Supports high-temperature melting |
| Max Temperature | 1600°C | Suitable for silicon melting |
| Crucible Capacity | 3KG | Practical for small-batch ingot casting |
| Solidification Speed | 5–25 mm/hour | Controlled directional solidification |
| Cold Ultimate Vacuum | 6.67×10⁻³ Pa | High vacuum processing |
| Core Component | PLC | Automated process control |
| Weight | 8T | Heavy-duty furnace structure |
How the Furnace Works
Step 1: Load Polysilicon Material
Polysilicon material is loaded into the crucible according to the required batch size.
Step 2: Vacuum and Inert Gas Protection
The furnace creates a high-vacuum environment and can use inert gas protection to reduce contamination during silicon processing.
Step 3: High-Temperature Melting
The furnace heats the silicon material up to 1600°C and turns it into molten silicon.
Step 4: Directional Solidification
The thermal field creates a controlled temperature gradient from top to bottom, helping the molten silicon solidify in one direction.
Step 5: Cooling and Ingot Output
After crystallization, tempering, and cooling, the final polysilicon ingot can be removed for downstream solar material use.
🔵 Request a Quote for WOLFU Polysilicon Ingot Casting Furnace
Main Advantages
High Vacuum Performance
The furnace supports high vacuum operation, helping reduce contamination and improve silicon processing stability.
Controlled Directional Solidification
The 5–25 mm/hour solidification speed supports stable crystal growth and better ingot consistency.
PLC + HMI Automatic Control
The control system can manage heating, melting, crystallization, tempering, and cooling in one process.
Purification Capability
Under suitable process conditions, the furnace can help improve polysilicon purity during ingot casting.
Customizable Furnace Solution
WOLFU can customize crucible capacity, furnace size, vacuum system, thermal field structure, and production configuration.
Suitable Applications
The WOLFU Polysilicon Ingot Casting Furnace is suitable for:
- Solar battery material production
- Photovoltaic silicon processing
- Polycrystalline silicon ingot casting
- Silicon purification projects
- Solar cell material preparation
- Crystal growth research and testing
Related WOLFU Equipment
For larger directional solidification projects, review:
🔵 WOLFU Polysilicon Directional Solidification Furnace
For single crystal silicon growth, review:
🔵 WOLFU Monocrystalline Silicon Growth Furnace
For solar-grade silicon melting, review:
🔵 WOLFU Industrial Silicon Melting Induction Furnace
Why Choose WOLFU?
WOLFU provides crystal growth furnaces, vacuum furnaces, silicon melting systems, industrial furnaces, and customized metallurgical solutions.
For polysilicon ingot casting projects, WOLFU can recommend suitable equipment based on crucible capacity, production scale, vacuum requirement, thermal field design, plant layout, and silicon purity target.
Conclusion
A Polysilicon Ingot Casting Furnace is a practical solution for melting, purifying, and directionally solidifying polycrystalline silicon materials for solar battery production.
The WOLFU furnace offers 1600°C maximum temperature, 3KG crucible capacity, 5–25 mm/hour directional solidification speed, 6.67×10⁻³ Pa ultimate vacuum, PLC + HMI control, and customizable furnace configuration.
If your company needs a reliable furnace for photovoltaic silicon processing or polysilicon ingot casting, WOLFU can provide a customized solution based on your project requirements.
🔵 Get a Quote for WOLFU Polysilicon Ingot Casting Furnace
FAQ
What is this furnace used for?
It is used for melting and directional solidification of polycrystalline silicon materials for solar battery material production.
What is the maximum temperature?
The maximum temperature is 1600°C.
What is the crucible capacity?
The listed crucible capacity is 3KG.
What is the directional solidification speed?
The directed solidification speed is 5–25 mm/hour.
Can WOLFU customize the furnace?
Yes. WOLFU can customize crucible capacity, furnace size, vacuum system, thermal field structure, and process configuration.
