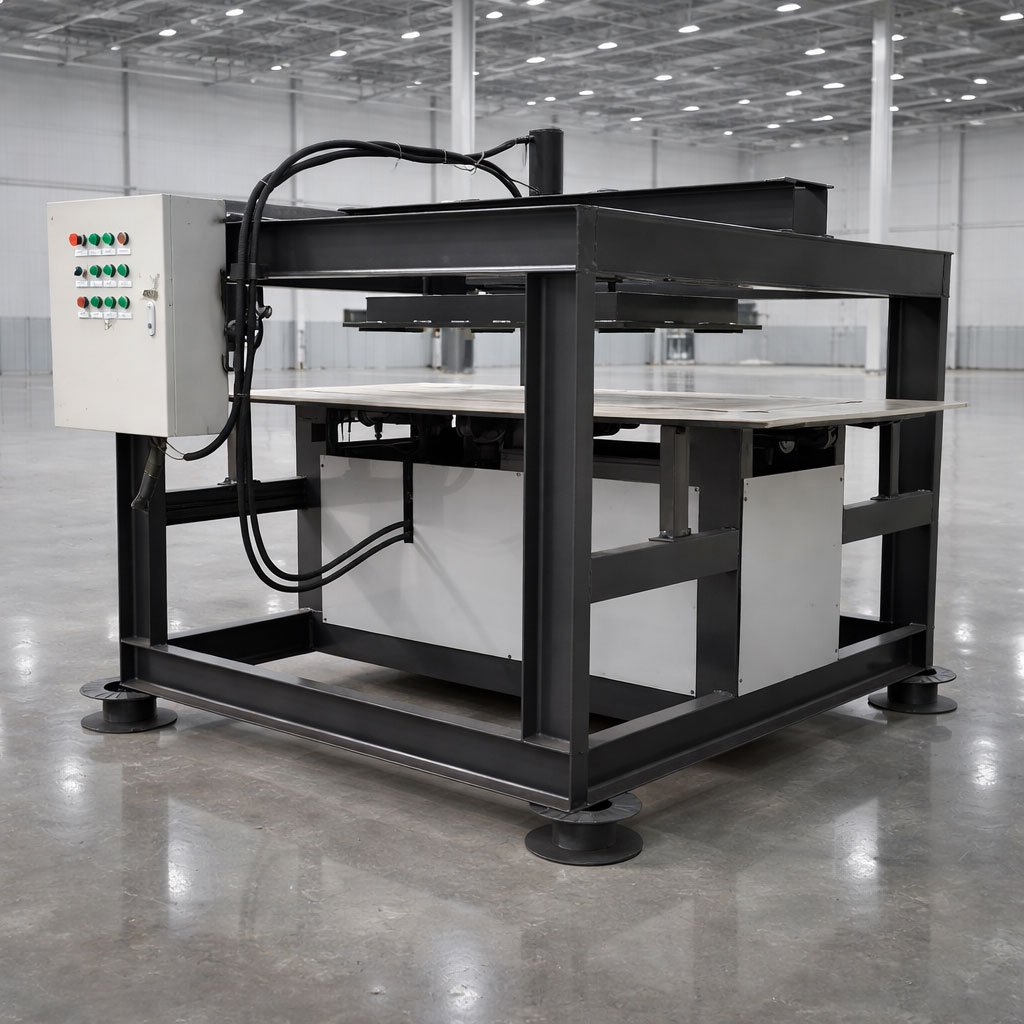

WOLFU Small Solar Panel Aluminium Frame Disassembling Recycling Machine is a fully automatic machine designed for removing aluminum frames from waste solar panels in recycling applications. This equipment is developed for safe operation, stable performance, and efficient frame dismantling, making it a practical solution for solar panel recycling plants.

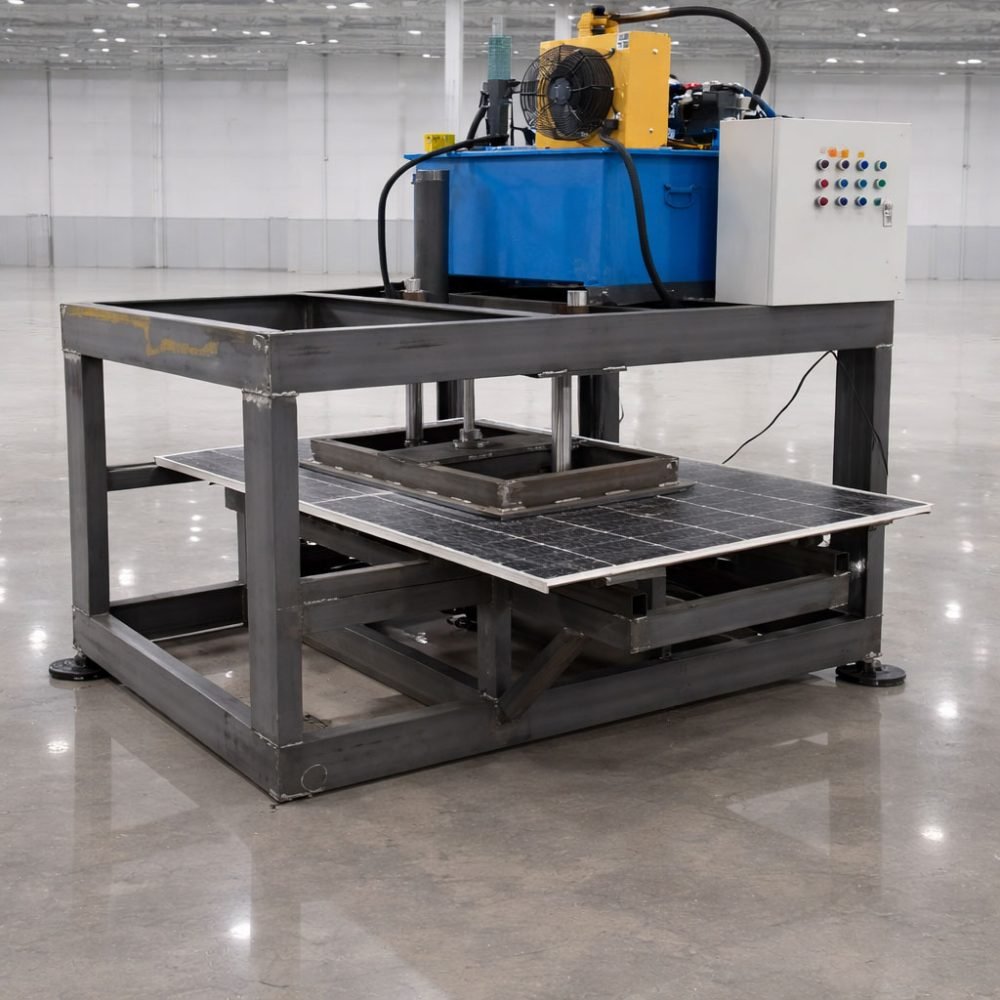

The machine works by placing photovoltaic panels manually or with a robotic arm onto the working table, where the upper compression structure fixes the panel securely. Under hydraulic control, the short-side mold removes the aluminum frame first, followed by the long-side mold. This process improves dismantling efficiency while reducing manual effort.
The equipment supports both manual and automatic control, allowing flexible operation according to different production requirements. By replacing molds, the machine can adapt to different photovoltaic panel sizes and specifications. Main machine models such as 160, 190, and 200 are available to meet different panel ranges.
This machine is suitable for customers looking for a reliable solar panel aluminum frame removing machine with high safety level, easy operation, and compatibility with different solar panel models.
- Fully automatic aluminum frame removing process
- High safety level with hydraulic control system
- Suitable for different solar panel sizes by changing molds
- Supports manual + automatic control mode
- Widely used in solar panel recycling applications
Technical Parameters
| Item | Specification |
|---|---|
| Product Name | Solar Panel Aluminum Frame Removing Machine |
| Type | Fully Automatic |
| Brand | WOLFU |
| Application | Solar Panel Recycling Machine |
| Suitable For | Solar Panel Framing Machine |
| Raw Material | Solar Panel |
| Function | Recycle Solar Panel / Remove Aluminum Frame |
| Keyword | Solar Panels Frame Dismantle Machine |
| Power | 5.5 kW |
| Weight | 1800 kg |
| Place of Origin | Henan, China |
| Control Method | Manual + Automatic |
| Pressure Plate Mode | Hydraulic |
| Key Selling Point | High Safety Level |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Color | Customer Requirement |
| Package Size | 1600 × 1200 × 2000 cm |
| Single Gross Weight | 3000 kg |
| Model Number | Motor Power (kW) | Stroke of Hydraulic Cylinder (mm) | Number of Hydraulic Cylinders (pcs) | Extension Length (mm) |
|---|---|---|---|---|
| 160 | 5.5 | 150 | 5 | 150 |
| 190 | 5.5 | 200 | 5 | 200 |
| 200 | 5.5 | 200 | 8 | 200 |
Service & Support
WOLFU provides not only reliable equipment, but also complete support for solar panel recycling projects. We are committed to helping customers improve dismantling efficiency, reduce labor intensity, and build safer recycling operations.
- Equipment Selection Support: We recommend suitable machine models according to your solar panel size, production demand, and plant layout.
- Customized Mold Solutions: The machine can be adapted to different photovoltaic panel specifications by replacing molds.
- Technical Guidance: We provide installation, commissioning, and operation guidance to ensure stable machine performance.
- After-sales Support: WOLFU offers maintenance support, troubleshooting assistance, and spare parts service.
- Project Solution Support: We can help customers integrate this machine into complete solar panel recycling lines for more efficient production.
With WOLFU, customers receive both a practical solar panel aluminum frame removing machine and dependable long-term service support for recycling applications.
