Technical Parameters
| Item | Specification |
|---|---|
| Product Name | Gas / Diesel / Heavy Oil Fired Tilting Aluminum Melting Furnace |
| Brand | WOLFU |
| Usage | Melting Furnace |
| Type | Gas Furnace |
| Voltage | 380 V |
| Application | Melting Aluminum or Copper |
| Raw Material | Various Scrap Aluminum, Copper, and Zinc |
| Final Products | Aluminum Ingot, Aluminum Billets |
| Capacity Range | 100 kg – 1.5 ton |
| Feature | Safety, Energy Saving, High Efficiency |
| Applicable Fuels | Natural Gas, LPG, Diesel, Heavy Oil, Coal Gas |
| Casting Method | Automatic Pouring |
| Applicable Industries | Foundry, Metallurgical Casting, Aluminum Recycling Plant |
| Core Components | Furnace, Control System, Hydraulic Rod Explosion-proof Valve, Ignition Transformer |
| Key Selling Points | Saving 15% of Gas, 5 Layer Safety Protection System, Increasing Service Life by 30% |
| Weight | 3 Ton |
| Dimension (L×W×H) | Non-standard / Customized |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing Inspection | Provided |
| Place of Origin | Henan, China |
| Capacity | Voltage | Machine Power | Temperature | Furnace Size | Crucible Size | Burner Power | Melting Time |
|---|---|---|---|---|---|---|---|
| 150 kg | 380V | 2KW | 850°C | 200×135×85 cm | 500×500 mm | 150KW | 60–120 mins |
| 200 kg | 380V | 2KW | 850°C | 200×135×90 cm | 600×450 mm | 150KW | 60–120 mins |
| 300 kg | 380V | 2KW | 850°C | 200×135×95 cm | 620×630 mm | 150KW | 60–120 mins |
| 350 kg | 380V | 2KW | 850°C | 200×135×100 cm | 650×650 mm | 150KW | 60–120 mins |
| 400 kg | 380V | 2KW | 850°C | 210×135×110 cm | 720×700 mm | 150–230KW | 60–120 mins |
| 500 kg | 380V | 2KW | 850°C | 220×150×120 cm | 780×750 mm | 230KW | 60–120 mins |
| 600 kg | 380V | 2KW | 850°C | 220×150×135 cm | 780×900 mm | 230KW | 60–120 mins |
| 800 kg | 380V | 2.2KW | 850°C | 250×170×135 cm | 880×880 mm | 230–320KW | 60–120 mins |
| 1000 kg | 380V | 3KW | 850°C | 250×170×135 cm | 1030×830 mm | 230–320KW | 60–120 mins |
Note: Capacity can be customized according to customer requirements.
Product Details
WOLFU gas fired aluminum melting furnace is designed for efficient melting of scrap aluminum and other non-ferrous metals in foundries, metallurgical casting plants, and aluminum recycling facilities. This tilting crucible furnace is suitable for processing waste aluminum cans, aluminum wires, aluminum castings, aluminum doors and windows, aluminum kitchenware, aluminum car wheels, as well as copper and zinc materials.
The furnace can work with multiple fuel options, including natural gas, LPG, diesel, heavy oil, and coal gas, giving customers greater flexibility based on local fuel availability and operating cost preferences. With strong melting capacity and stable thermal performance, the equipment is suitable for producing aluminum ingots, aluminum billets, and other cast products.
This hydraulic tilting melting furnace can be used together with aluminum ingot casting machines and die-casting machines. It is also suitable for holding, degassing, and refining molten aluminum, making it a practical solution for different melting and casting requirements.

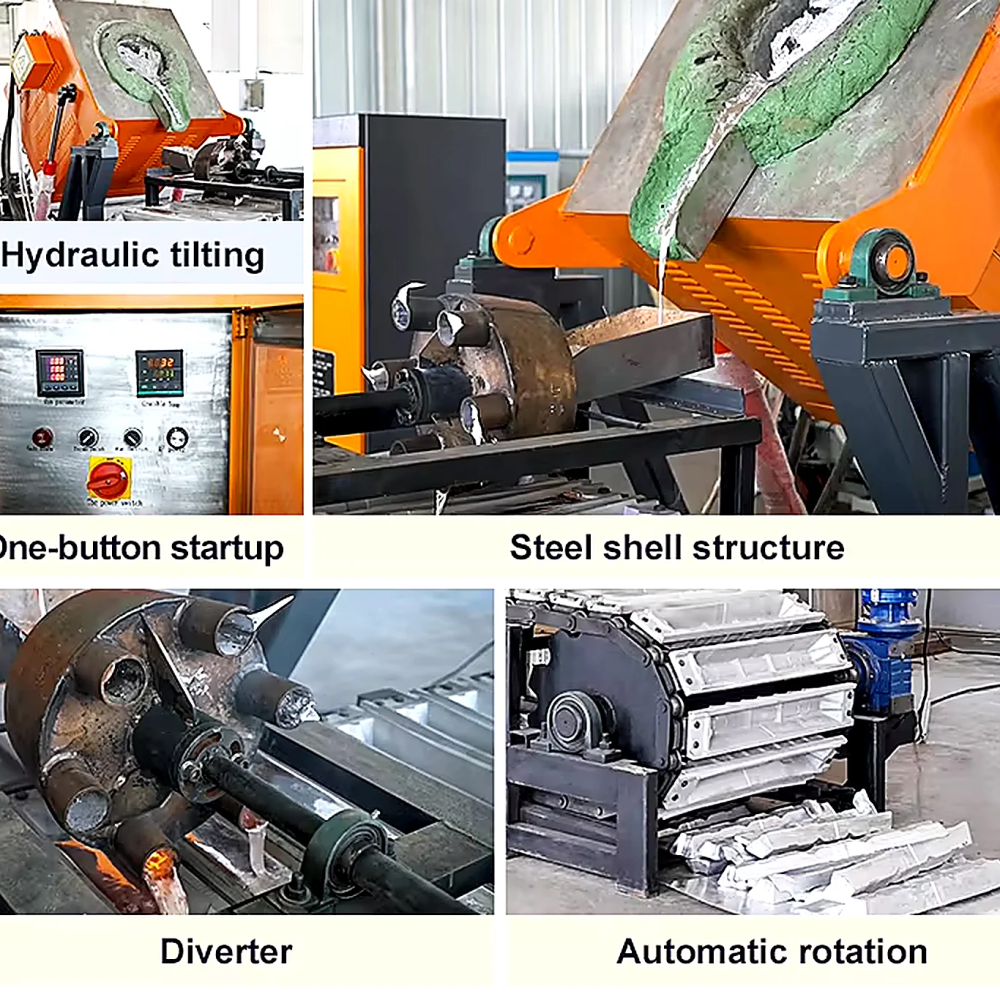

The furnace shell is welded with steel plates and section steel for reliable structural strength. The frame columns use thick-wall square tubes, while the furnace chamber is integrally cast with refractory materials and further insulated with aerogel for improved heat retention and energy efficiency. A real-time temperature measuring device is installed to display the furnace chamber temperature during operation.
WOLFU aluminum melting furnace is built for safety, energy saving, and high efficiency. It features a 5-layer safety protection system, lower gas consumption, and longer service life, helping customers reduce operating costs and improve production stability in scrap aluminum recycling and melting applications.
Service & Support
WOLFU provides complete service and support for aluminum melting and recycling projects. We understand that foundries and recycling plants need efficient melting performance, flexible fuel options, reliable safety protection, and stable after-sales support. Our team works with customers to provide practical furnace solutions for scrap aluminum recovery and non-ferrous metal melting.
- Model Selection Support: We help customers choose the right furnace capacity based on raw material type, output demand, and production process.
- Fuel Option Guidance: WOLFU can recommend suitable fuel solutions based on local availability, including natural gas, LPG, diesel, heavy oil, and coal gas.
- Customized Capacity Solutions: Furnace size and capacity can be customized for different aluminum recycling plants, foundries, and ingot casting operations.
- Process Integration Support: This furnace can be matched with aluminum ingot casting machines and die-casting machines for a more complete melting and pouring solution.
- Inspection Before Delivery: Machinery test reports and video outgoing inspection are available before shipment.
- After-sales Support: We provide technical assistance, operation guidance, and warranty service to help customers maintain stable production.
