Technical Parameters
| Machine Type | Aluminum Ingot Production Line |
| Brand | WOLFU |
| Application | Metal Recycling and Ingot Casting |
| Capacity | 100 kg – 20 tons per hour |
| Power | 3 kW |
| Voltage | 380 V |
| Weight | 1500 kg |
| Energy Source | Electric / Gas |
| Final Product | Aluminum / Copper / Zinc Ingots |
Material → Process → Final Product
| Raw Materials | Production Process | Final Products |
|---|---|---|
|
Waste Aluminum Cans Aluminum Scrap Copper Scrap Zinc Scrap |
Metal Melting Furnace Molten Metal Holding Automatic Pouring Ingot Casting Line |
Aluminum Ingots Copper Ingots Zinc Ingots |
Applications
The WOLFU metal recycling and ingot casting production line is widely used in:
- Aluminum can recycling plants
- Scrap metal recycling facilities
- Aluminum ingot production factories
- Copper recycling workshops
- Metal smelting plants
Applicable Raw Materials
The recycling system can process various metal materials including:
- Waste aluminum cans
- Aluminum scrap
- Copper scrap
- Zinc scrap
- Mixed metal scraps
Final Products
After melting and casting, the system produces:
- Aluminum ingots
- Copper ingots
- Zinc ingots
Ingot size can be customized according to customer requirements.
Key Features
Automatic Ingot Casting
The system adopts an automatic pouring system to ensure stable casting quality.
Adjustable Casting Speed
Casting speed can be adjusted based on production capacity.
Customizable Ingot Mould
Ingot mould sizes and logo markings can be customized.
Energy Efficient Operation
Supports both electric heating and gas heating systems for flexible operation.
Continuous Production Line
The integrated ingot line enables continuous production with stable output.
Ingot Production Specifications
| Ingot Weight | 10 kg / 15 kg / 20 kg |
| Melting Time | 40 – 90 minutes per pot |
| Pouring Speed | Adjustable |
| Ingot Mould | Customizable with logo |
| Layout Drawing | Available |

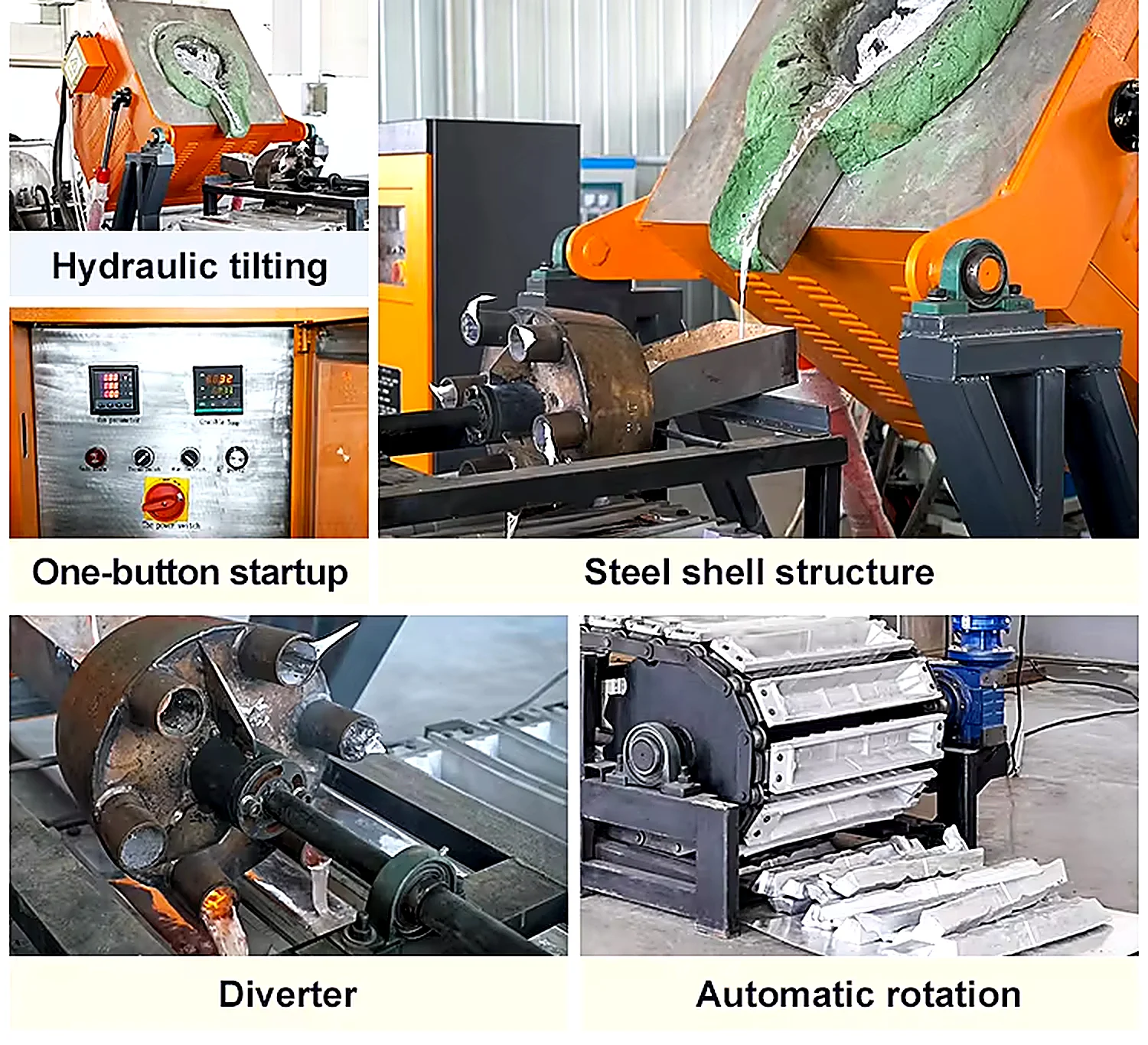

Working Process
The aluminum ingot production line mainly includes the following stages:
Scrap Feeding
Waste metal materials are fed into the melting furnace.
Metal Melting
The furnace melts aluminum, copper, or zinc into molten metal.
Molten Metal Holding
The molten metal is maintained at a stable temperature before casting.
Automatic Pouring
The pouring system distributes molten metal into ingot moulds.
Ingot Casting
Molten metal solidifies into standardized metal ingots.
