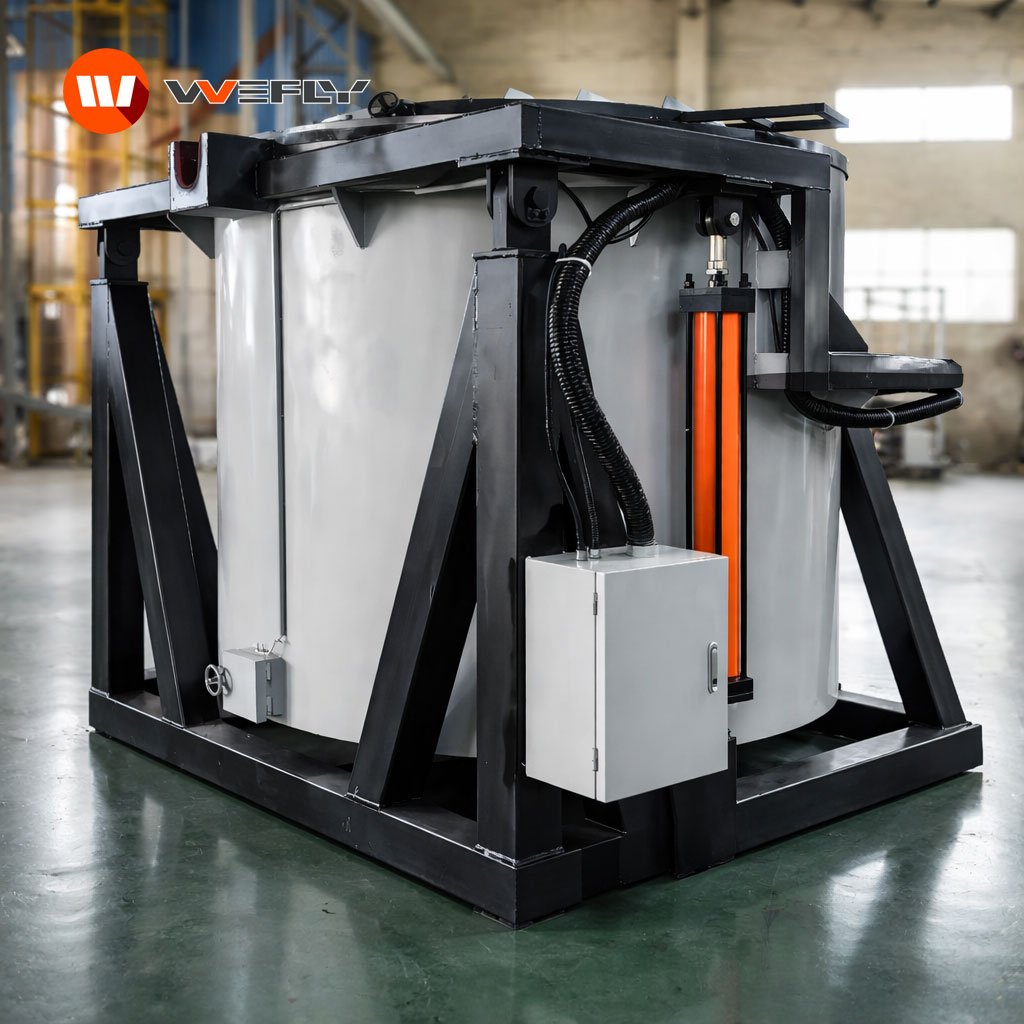

Gas & Oil Fired Crucible Melting Furnace for Brass Aluminum Zinc Copper | Non-Ferrous Metal Smelting Furnace

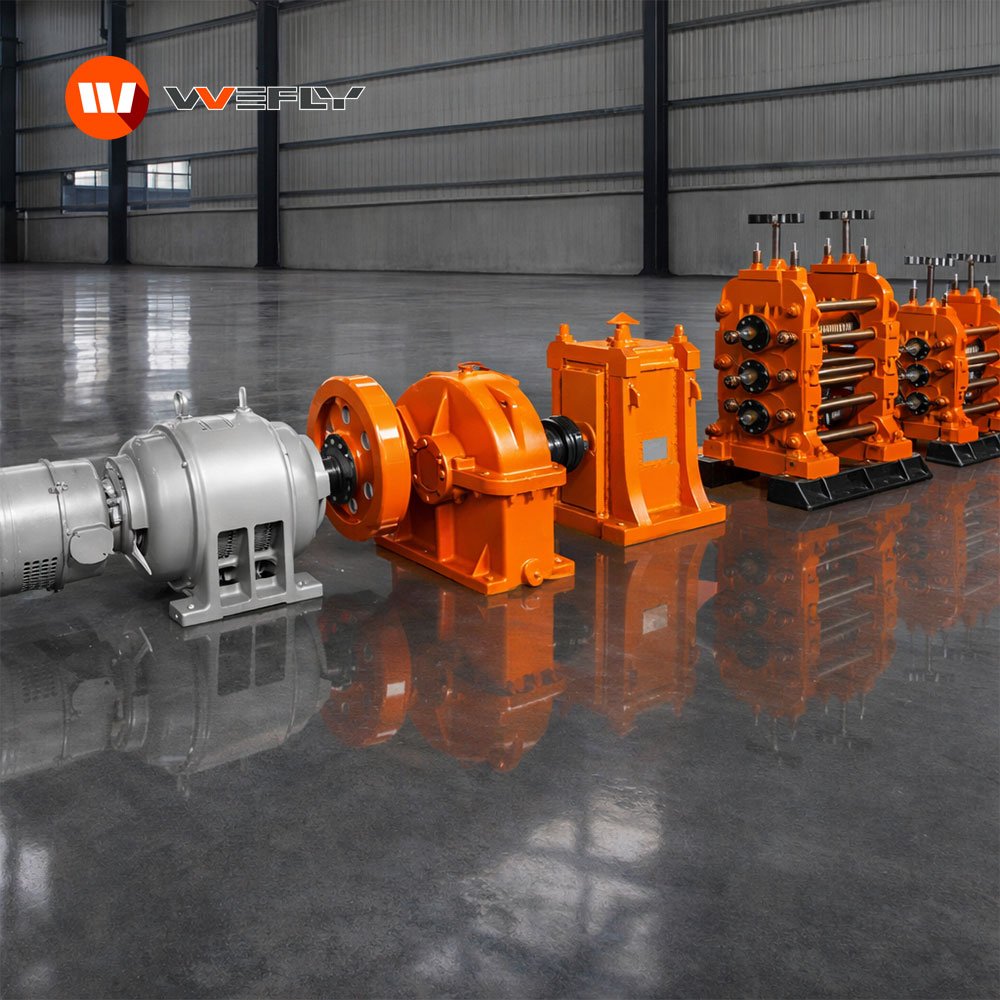

Hot Rolling Steel Rebar Production Line | Automatic Horizontal Rolling Mill for Steel Bar & Rod Manufacturing

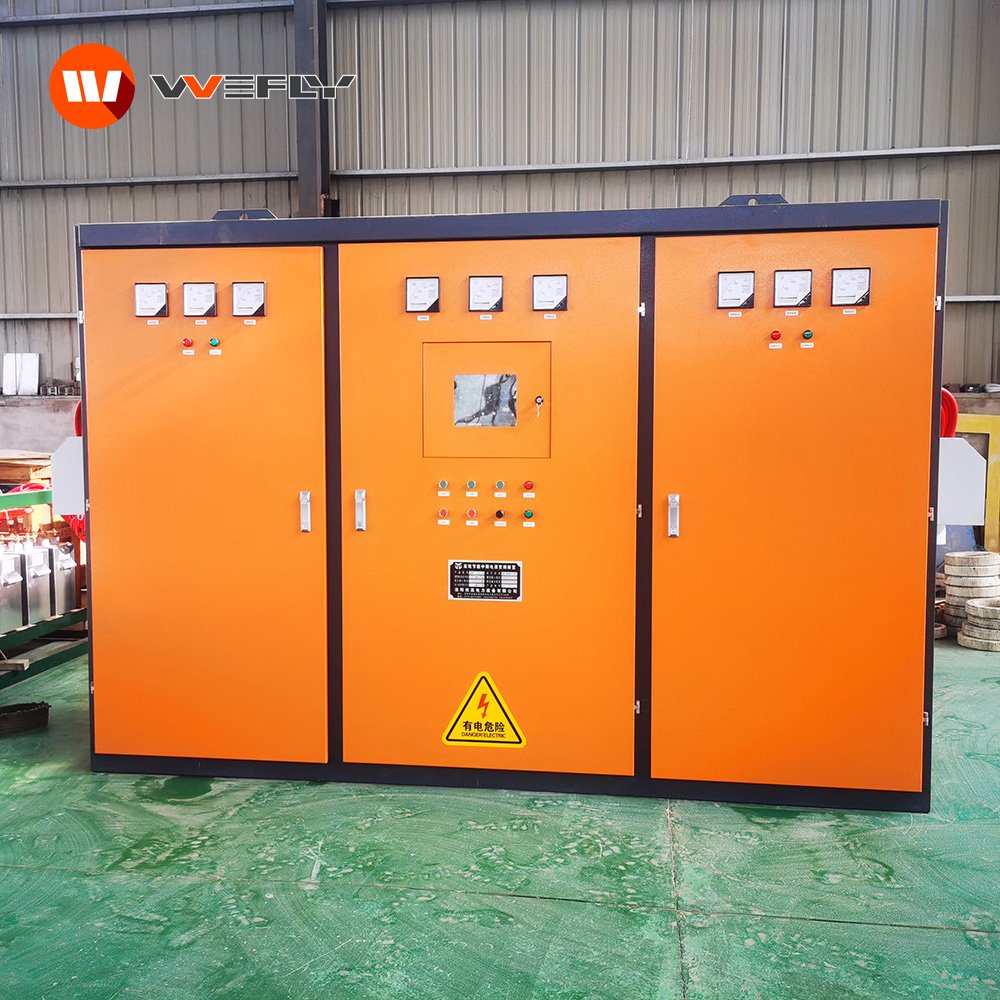

500kg–1000kg Medium Frequency Induction Melting Furnace for Copper, Steel & Aluminum | Energy-Efficient Industrial Smelting Furnace

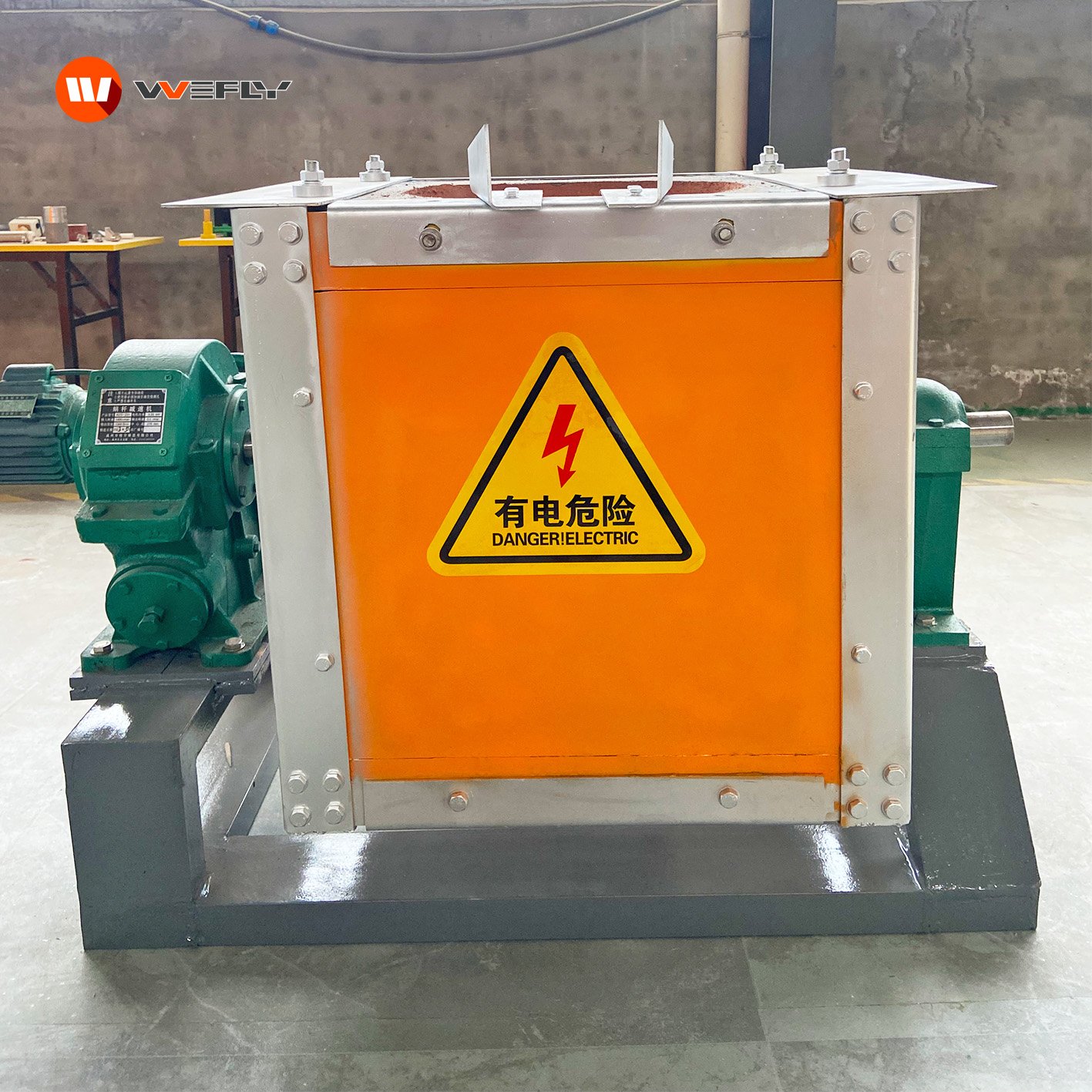

50kg Small Induction Crucible Furnace for Copper & Aluminum Scrap Melting

2 Ton Medium Frequency Induction Furnace for Aluminum & Steel Metal Melting

100kg Automatic Medium Frequency Induction Melting & Continuous Casting Furnace for Gold & Precious Metals

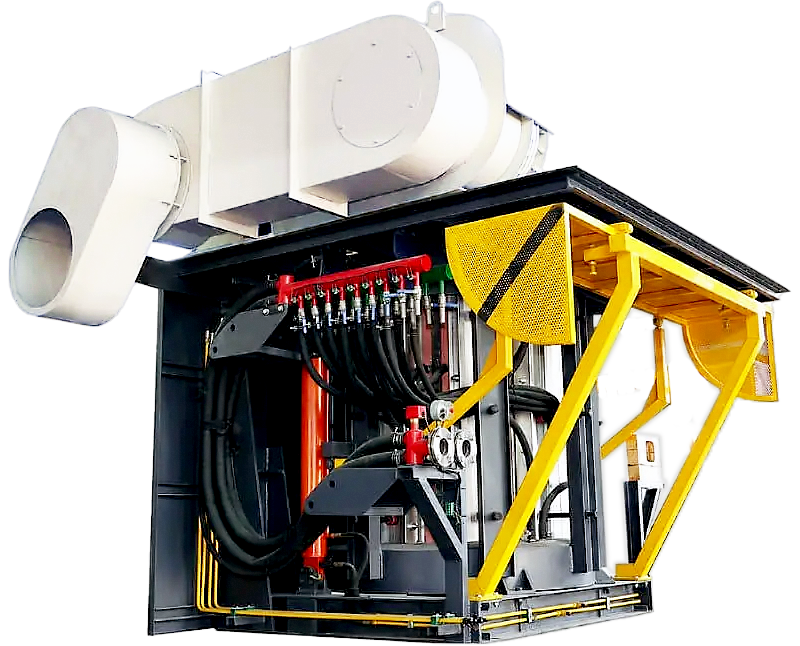

5 Ton Medium Frequency Induction Melting Furnace for Steel, Copper & Aluminum Casting

1150℃ Induction Heating Furnace for Aluminum Melting (Water-Cooled, 200kW, 380V)

0.5T Medium Frequency Induction Melting Furnace for Scrap Steel | 500KG Professional Metal Melter

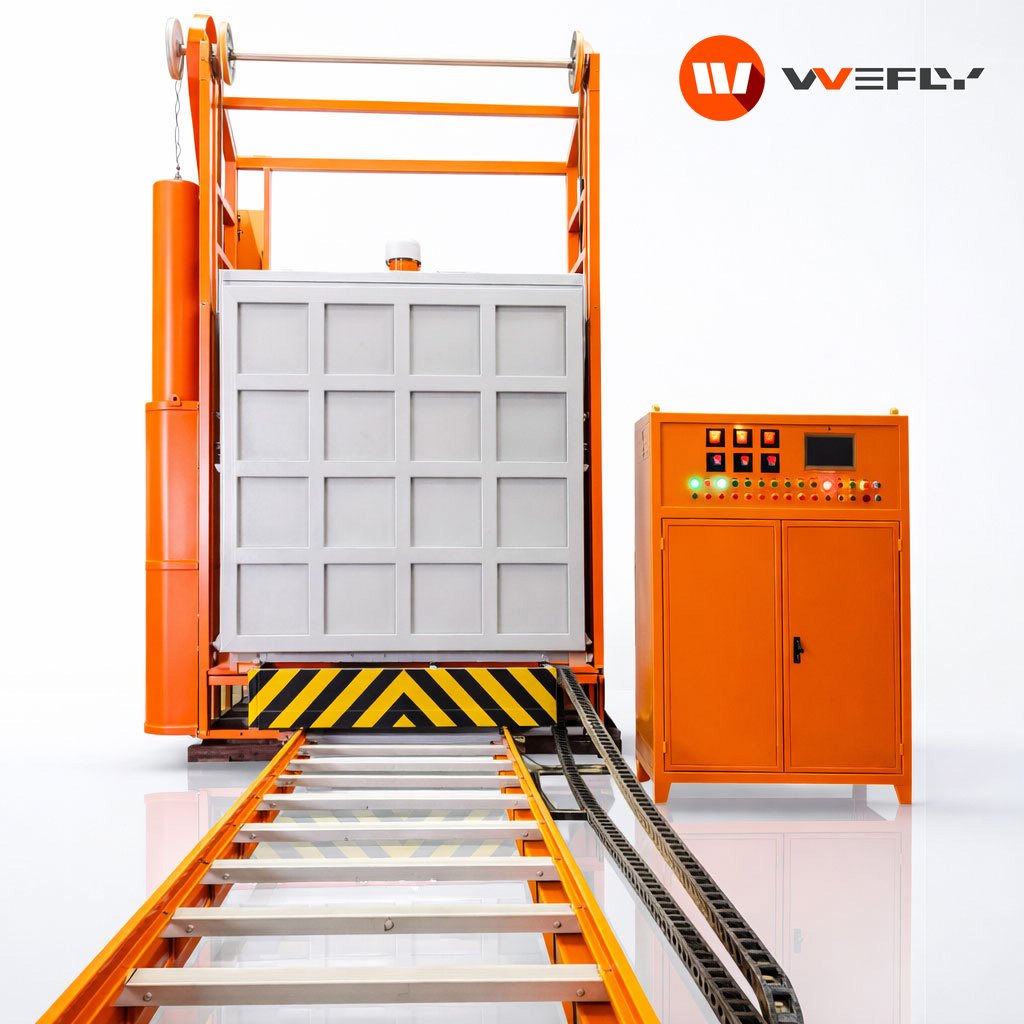

$Annealing Furnace Specifications Standardized technical parameters for industrial heat treatment applications. Product Type Trolley Type Annealing Furnace (Heat Treatment Furnace) Furnace Model Annealing Furnace Max Temperature 1150°C Working Temperature 0–1150°C Voltage 380V Power 130 kW Capacity 10T Workpiece Material Manganese Steel Heating Element Resistance Wire (Cr21-Al6-Nb heating belt / wire) Heating Method 3-direction heating (Left / Right / Bottom) Cooling Type Water Cooling Control System 2-zone temperature control, 7-inch touch screen, program & record; USB data export Core Components Motor Furnace Door Electric lifting Trolley Structure Channel steel base + load wheels + traction motor Dimensions (L×W×H) 1800 × 1400 × 1400 mm Weight 10 tons Origin Henan, China Certifications CE, ISO Warranty 1 year Mechanical Test Report Provided Video Outgoing Inspection Provided Key Selling Points Easy operation, remote control, energy-saving, high safety level Parameters can be customized based on your workshop layout, load, and process curve. For heavy-duty continuous operation, spare parts support is available (heating belt/wire, control cabinet, refractory fittings). Industrial Trolley Type Annealing Furnace The Wolfu trolley-type annealing furnace is engineered for precision heat treatment of heavy-duty metal components. Designed for continuous industrial operation, this system delivers stable heating performance, programmable temperature control, and optimized energy efficiency for metallurgical production lines. Structural Design & Construction 4.0 mm reinforced steel furnace shell CO₂ shielded welding for enhanced durability Industrial anti-corrosion surface coating Channel steel trolley base with traction motor Electric lifting furnace door system Advanced Heating System Chromium 21 Aluminum 6 Niobium resistance heating elements Three-direction heating (left / right / bottom) Ceramic fiber insulation lining Energy-efficient bottom heating structure Long service life heating belt configuration Intelligent Temperature Control 2-zone independent temperature control 7-inch industrial touch screen interface Programmable 30-segment temperature curves Real-time temperature recording USB data export support Remote monitoring option Main Applications Metal annealing and stress relief Manganese steel heat treatment Aluminum and copper homogenization Battery recycling thermal processes Industrial component conditioning Safety & Reliability Over-temperature protection system Water cooling protection design Industrial-grade electrical cabinet Full-load testing before delivery CE & ISO certified manufacturing Need a Custom Heat Treatment Solution? Contact Wolfu for technical consultation, layout design, and complete industrial furnace systems.$

Trolley Type Annealing Furnace (0–1150°C) | 10T Industrial Heat Treatment Furnace
