Technical Parameters
| Model | 10T |
| Voltage | 380V |
| Total Power | 4 KW |
| Cooling Type | Cross Flow |
| Circulating Water Volume | 11.7 m³/h |
| Air Volume | 11750 m³/h |
| Circulation Pump | 2 Units |
| Circulation Head | 28 |
| Noise Level | 35–39 dB |
| Dimensions | 2200 × 1050 × 2600 mm |
| Weight | 510 KG |
Product Details

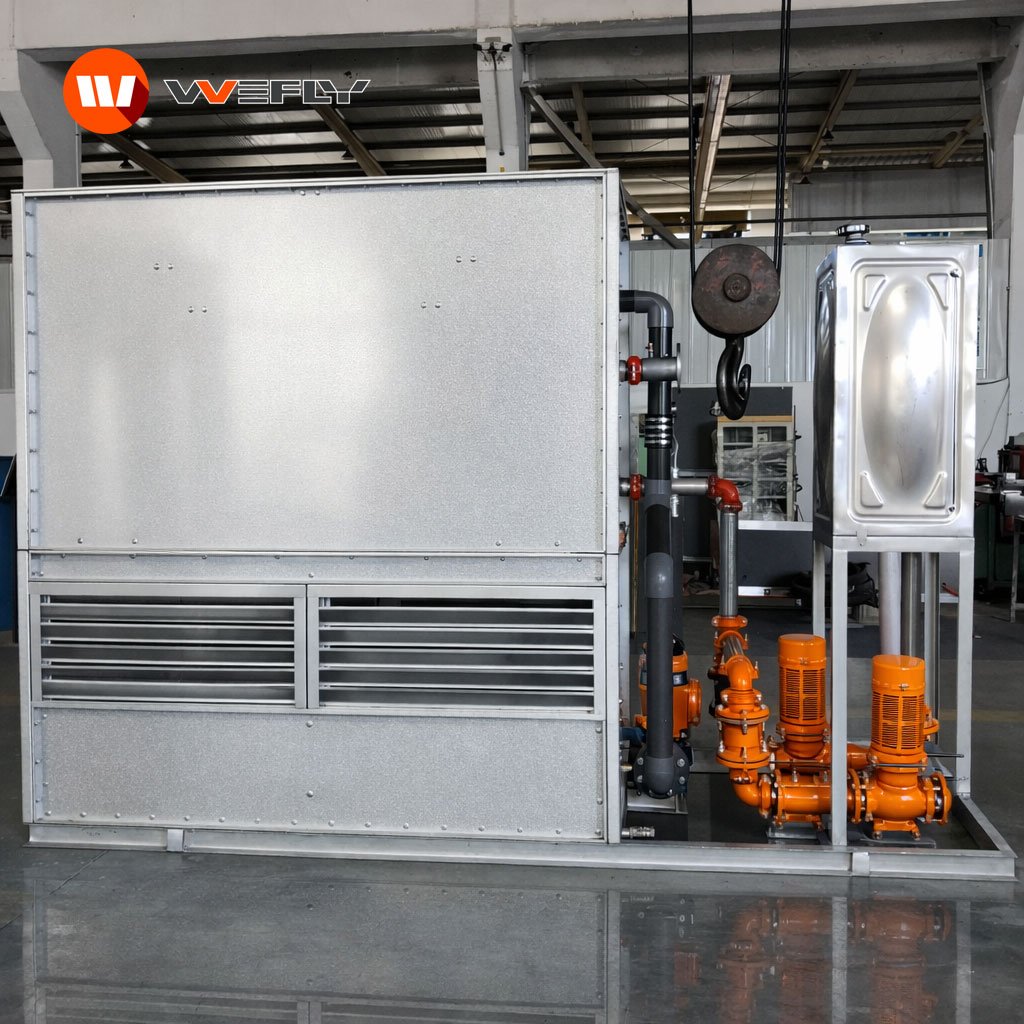

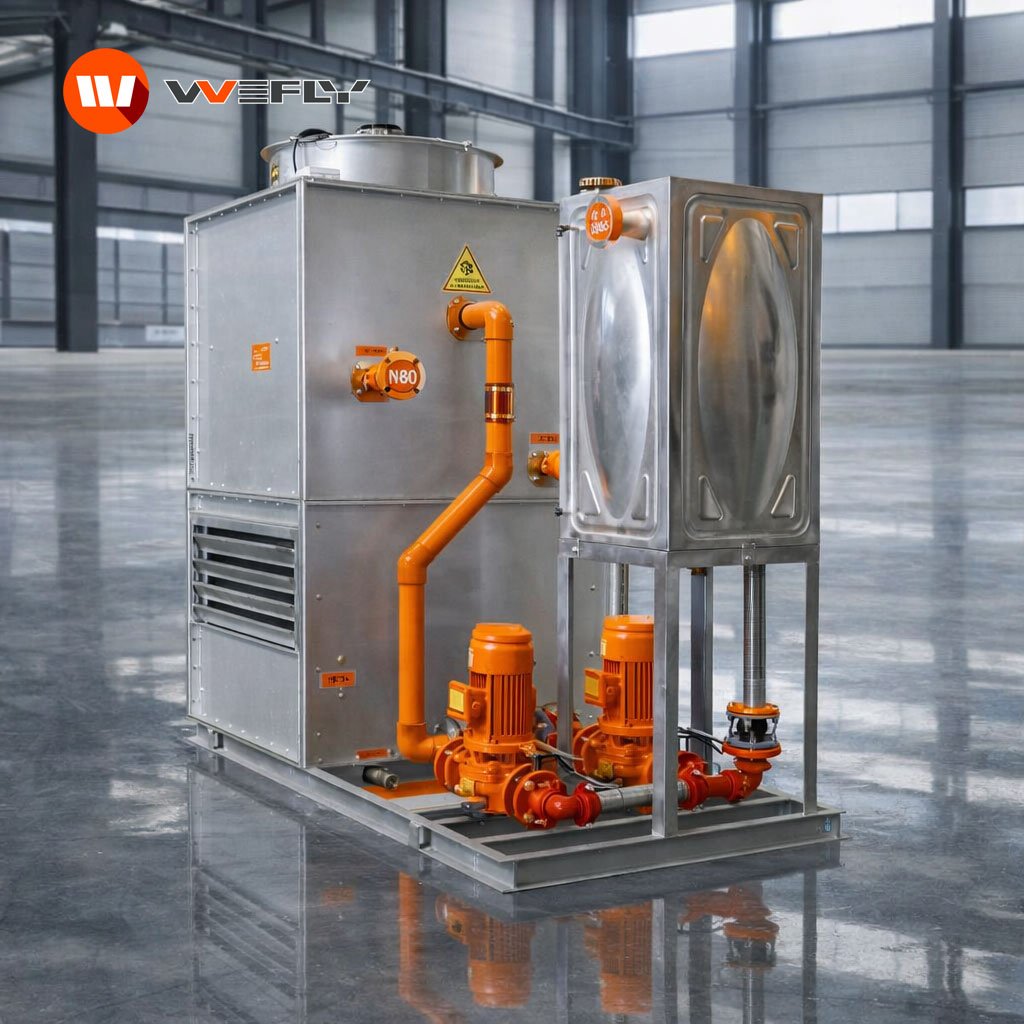

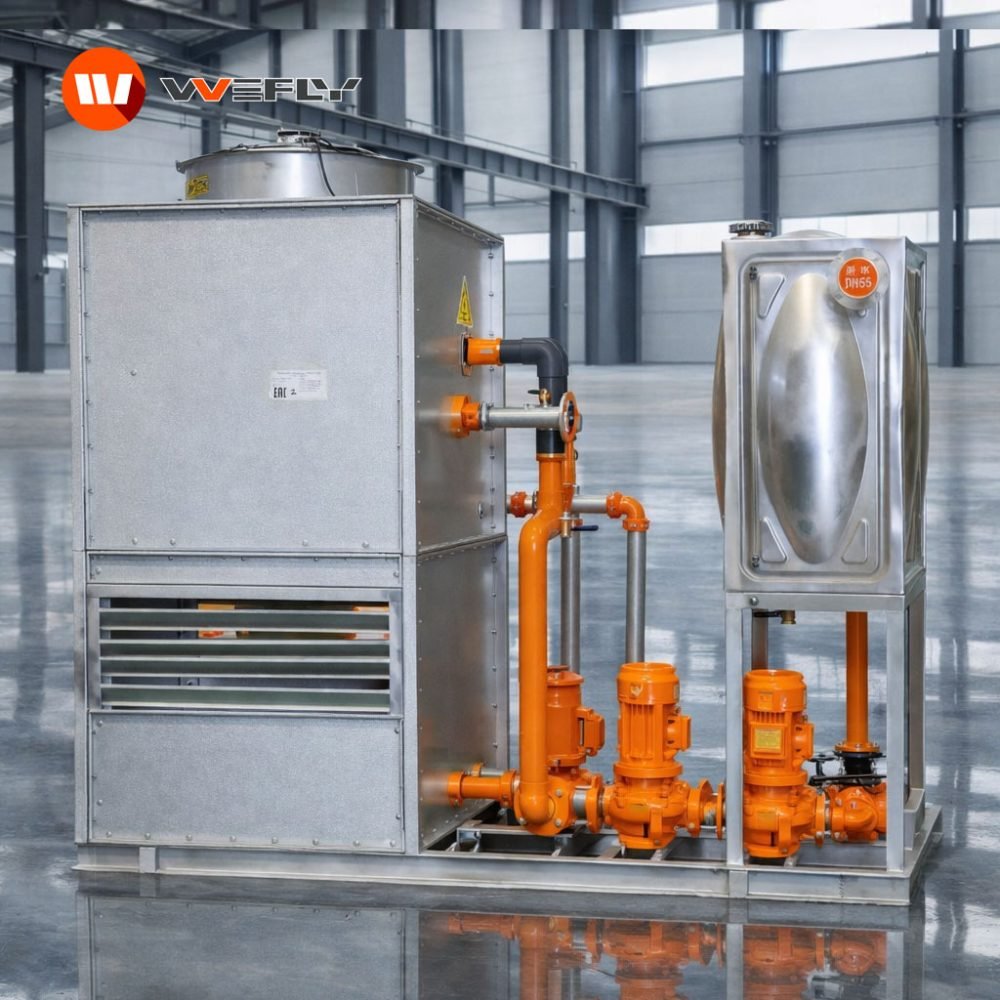

The closed water cooling tower is designed to provide efficient cooling for induction furnaces, heating elements and other industrial equipment. The system adopts a closed-loop water circulation structure to prevent the cooling medium from contacting the air, ensuring stable cooling performance and preventing scaling or contamination.
This cooling system is widely used in metal melting furnaces, aluminum casting production lines and other high-temperature industrial applications. With compact structure, low maintenance requirements and energy-saving design, it provides a reliable cooling solution for continuous industrial production.
- Closed-loop water circulation system
- Stable cooling performance for industrial furnaces
- Compact structure and easy installation
- Low water consumption and energy saving
- Reliable operation with low maintenance
Product Features
- Closed Cooling System – Uses demineralized water that does not contact air, preventing scaling and maintaining high cooling efficiency.
- Low Water Consumption – Circulating water system significantly reduces water loss during operation.
- Efficient Water Collection – Equipped with a water collector to capture spray water and fog, minimizing water wastage.
- Compact Design – Small footprint and easy installation make it suitable for various industrial environments.
- Low Maintenance Cost – Fewer wear parts result in lower failure rates and easier maintenance.
- Energy Saving – Intelligent control system helps reduce power consumption and improve overall energy efficiency.
