Product Overview

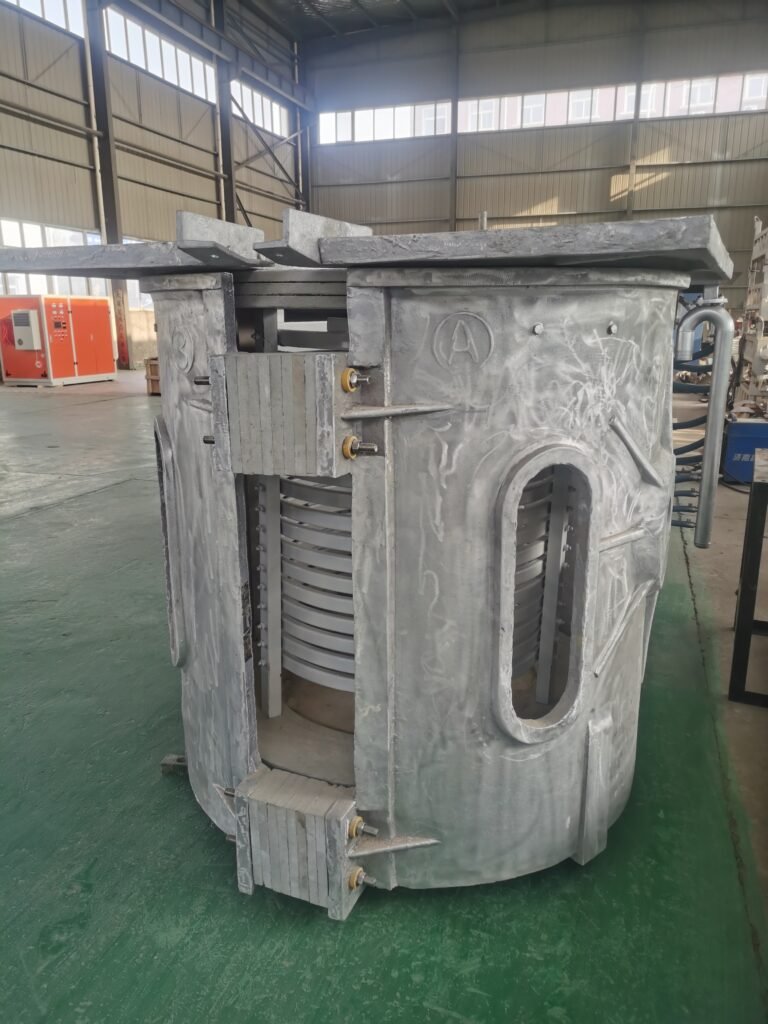

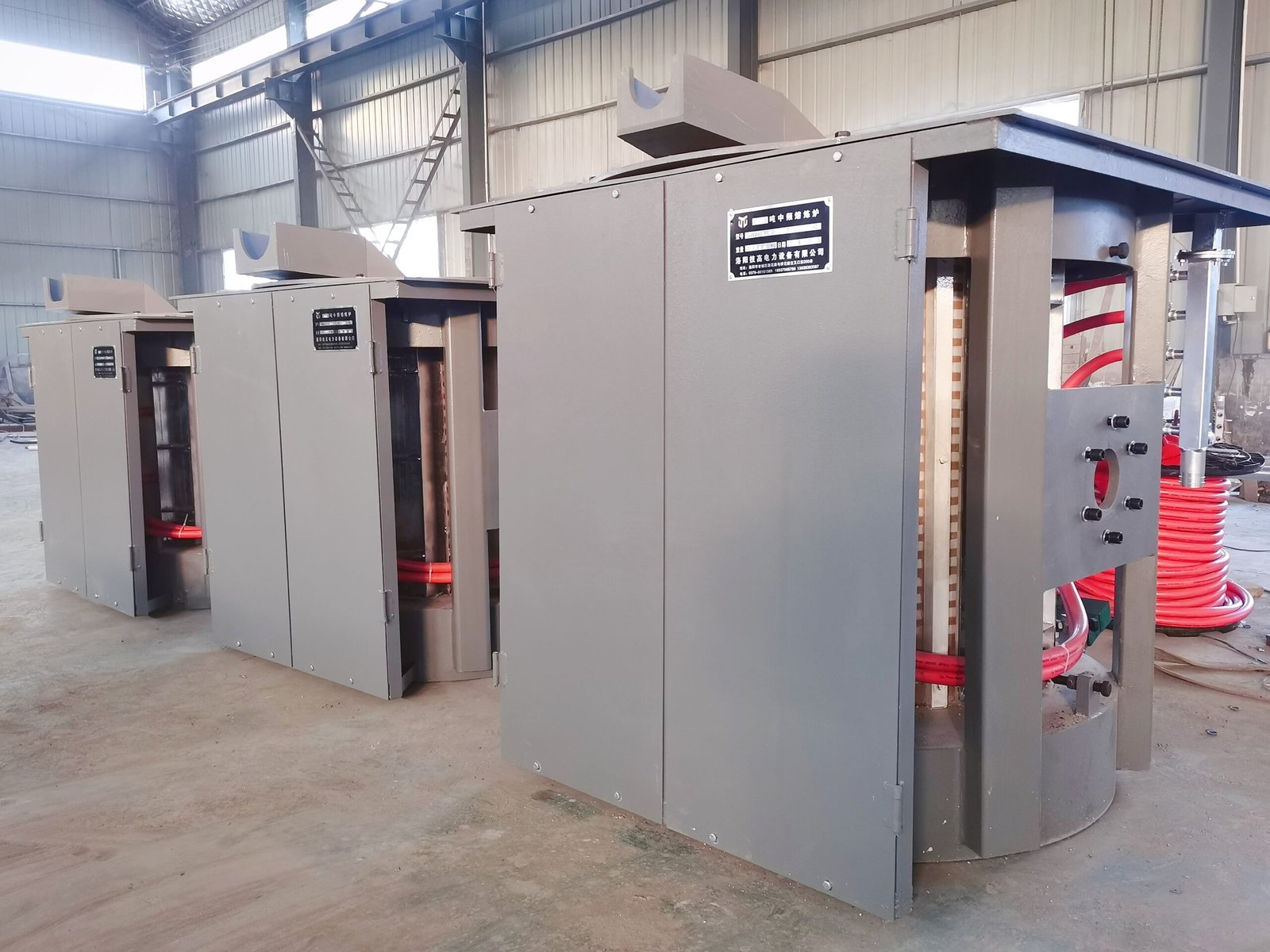

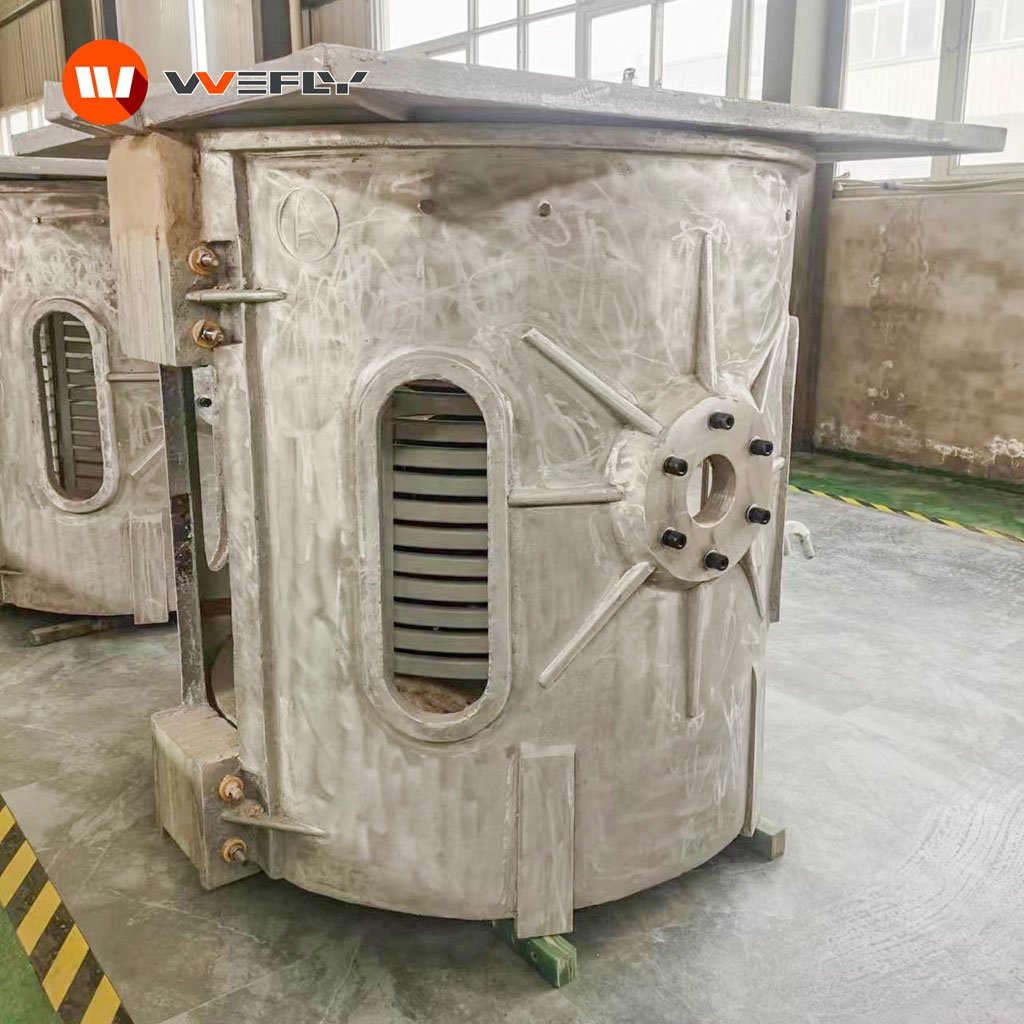

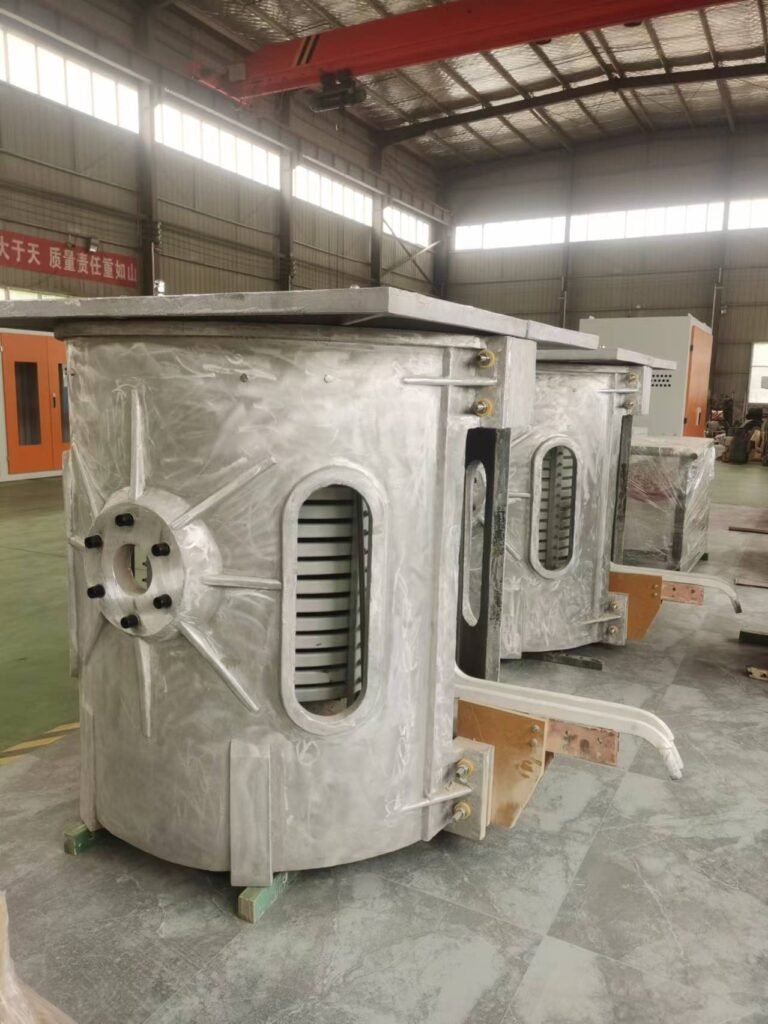

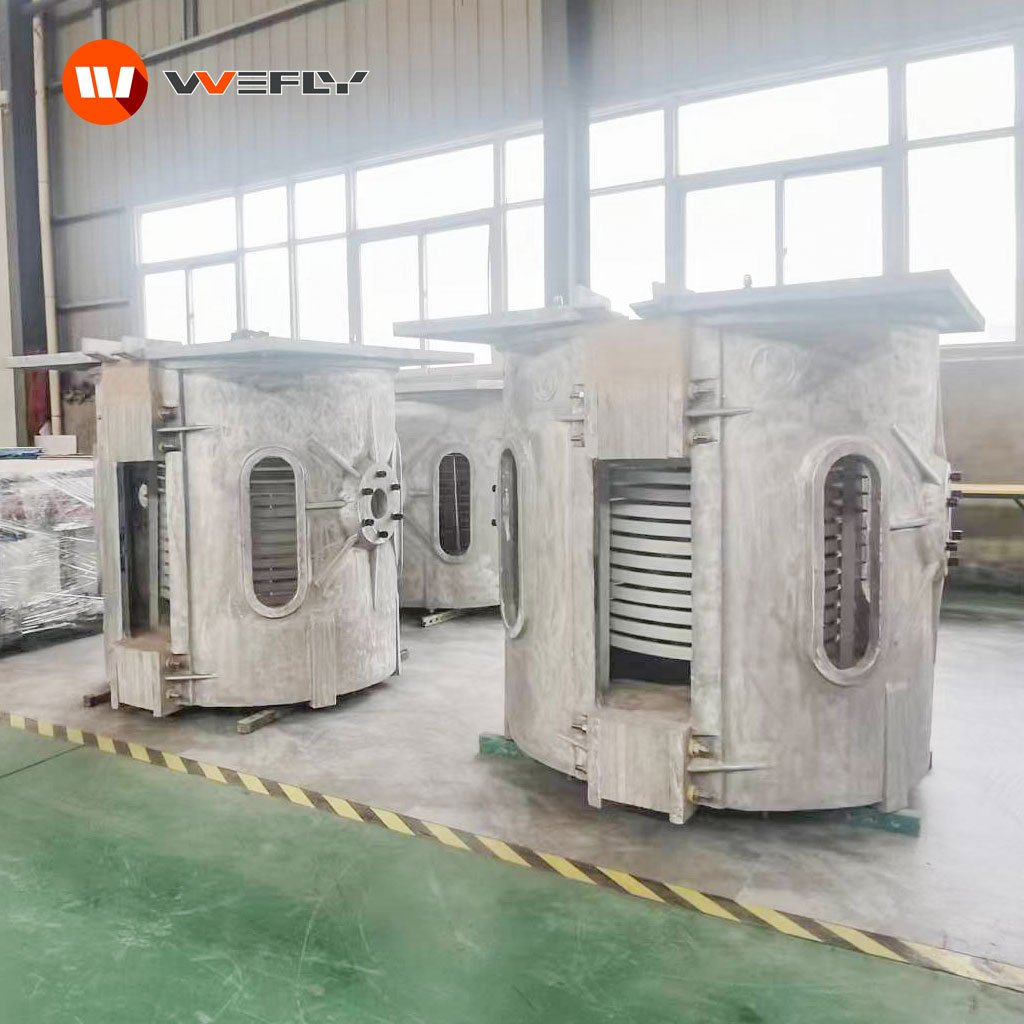

The 100kg Automatic Medium Frequency Induction Melting Furnace is specially engineered for melting and continuous casting of gold, silver, and other precious metals.
It combines advanced medium-frequency electromagnetic induction technology with automatic feeding and casting systems, allowing consistent ingot production and precise control over the metal temperature and composition.
Key Features
- Automatic feeding and continuous casting system for small-scale precious metal production
- Medium frequency induction heating ensures fast and uniform melting
- Precise temperature control suitable for gold, silver, platinum, and other alloys
- Compact 100kg capacity ideal for jewelry workshops and small foundries
- Stainless steel furnace crucible for durability and corrosion resistance
- Real-time monitoring of furnace temperature, power, and casting parameters
- Energy-efficient design with stable power output
Applications
- Gold and silver melting
- Continuous ingot casting for jewelry manufacturing
- Small-scale precious metal foundries
- Alloy and refining production
Melting Process
- Material preparation: Sort and clean gold or precious metal scraps, remove impurities.
- Charging: Add materials gradually into the crucible to avoid overfilling.
- Melting: Heat metals using medium frequency induction, monitor temperature precisely according to melting point.
- Alloying (optional): Add alloying elements and stir to ensure uniform composition.
- Continuous casting: Pour molten metal into molds automatically via the casting system.
- Furnace cleaning: Prepare furnace for the next batch.
Technical Specifications
| Parameter | Specification |
|---|---|
| Furnace Type | Automatic Medium Frequency Induction Melting & Casting Furnace |
| Capacity | 100 kg |
| Voltage | 3 Phase, 380V |
| Power | 200 kW |
| Frequency | 750–1000 Hz |
| Furnace Crucible | Stainless Steel |
| Cooling System | Water-cooled |
| Weight | Approx. 1.2 T |

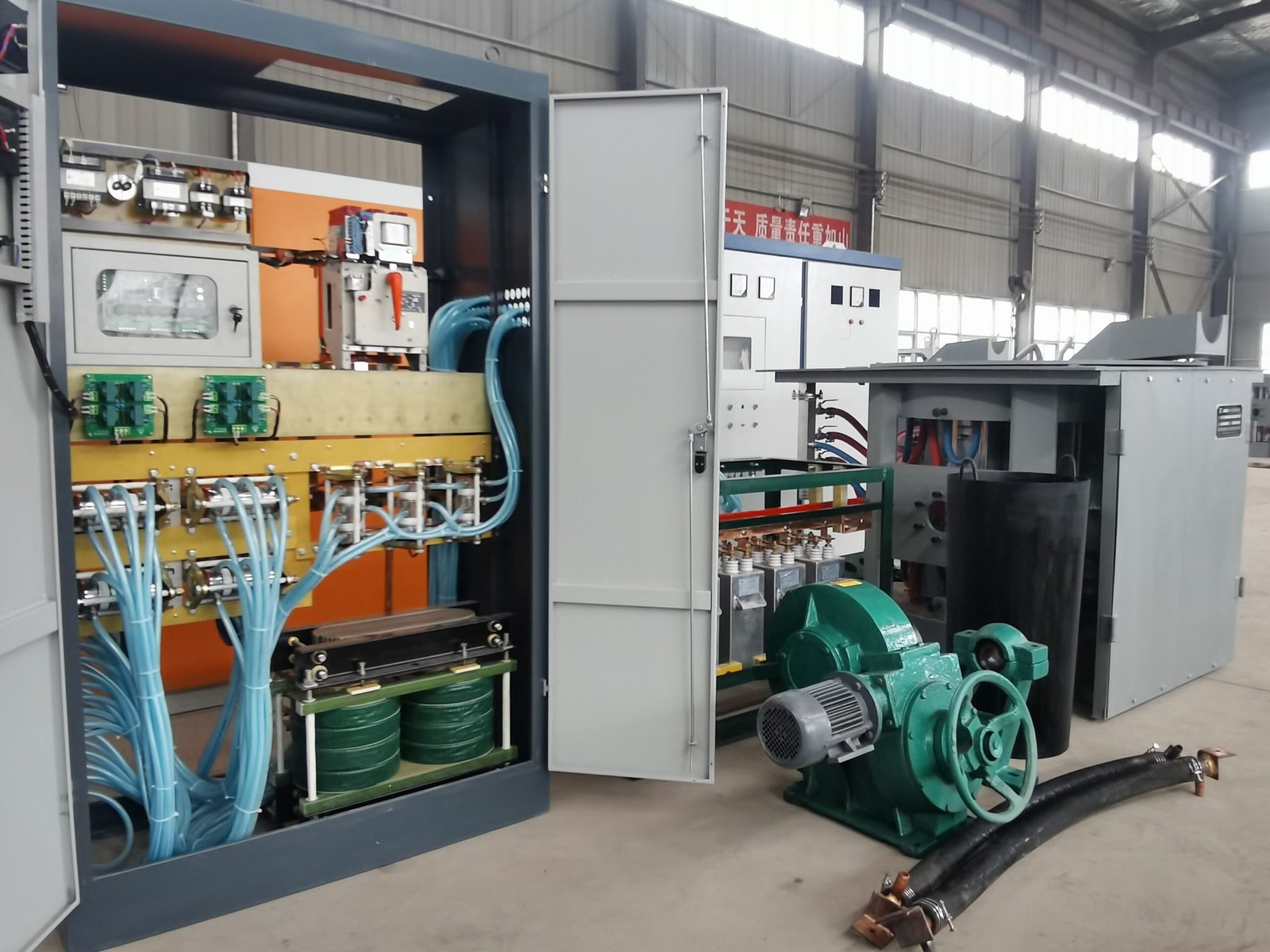

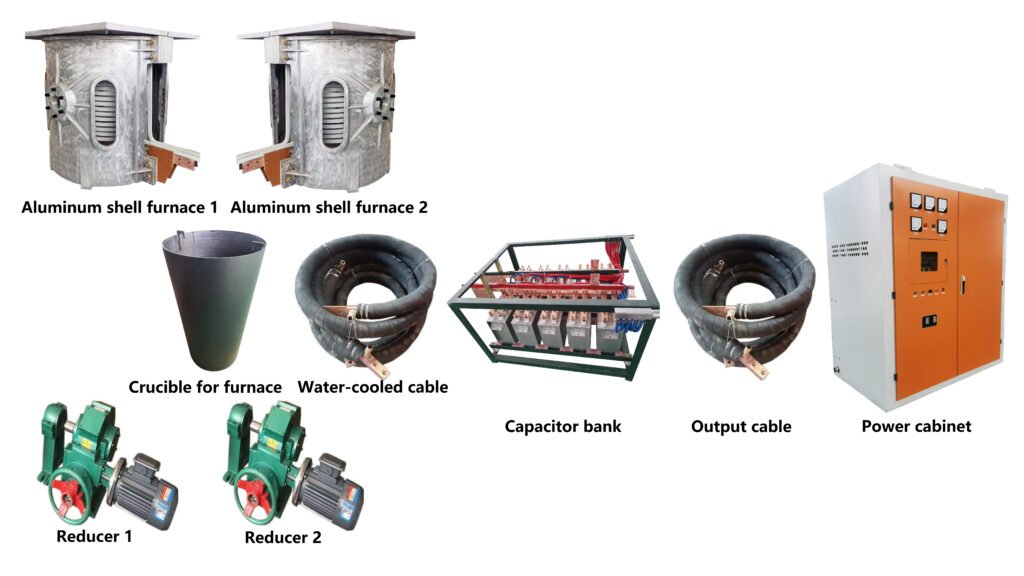

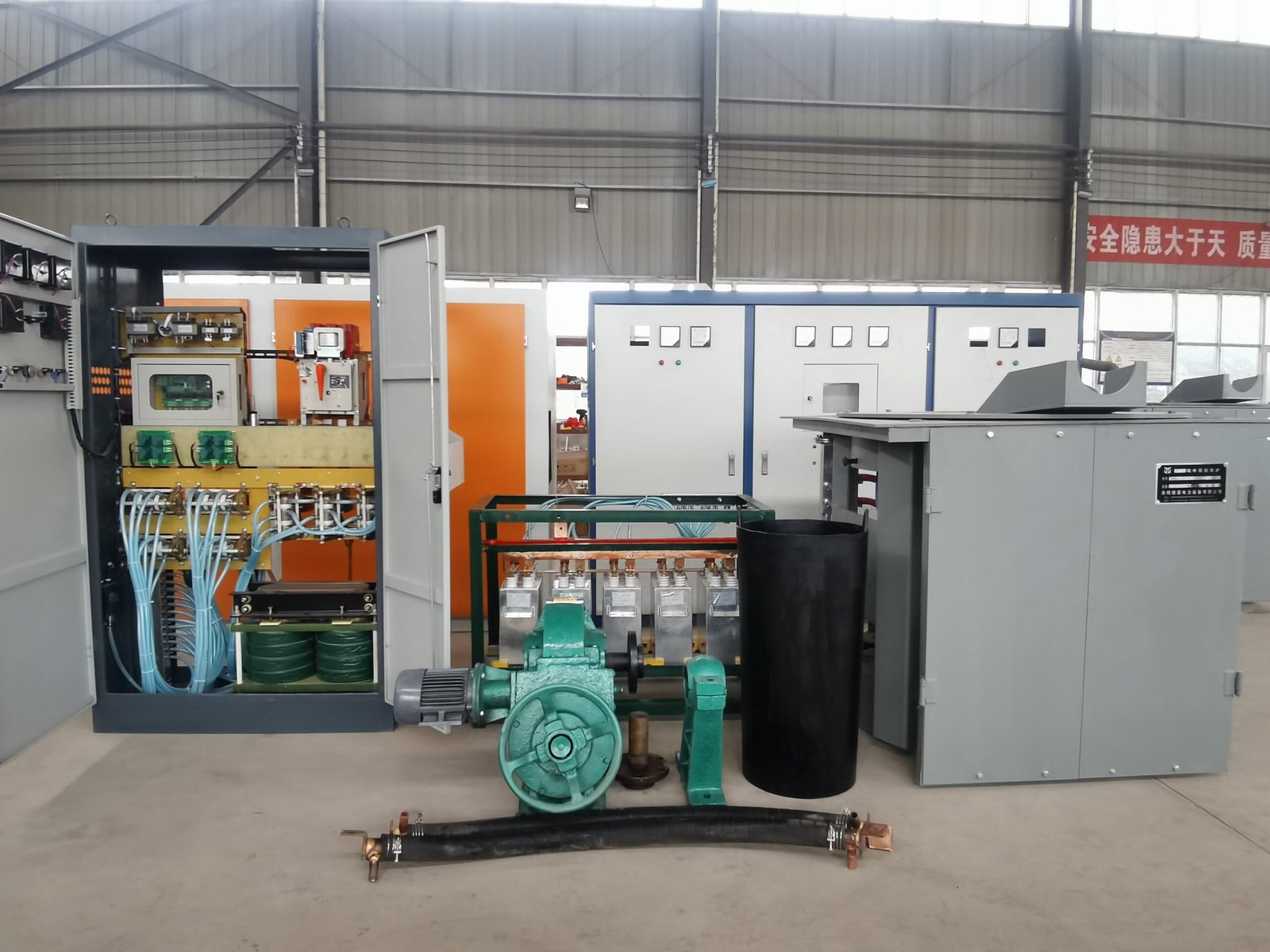

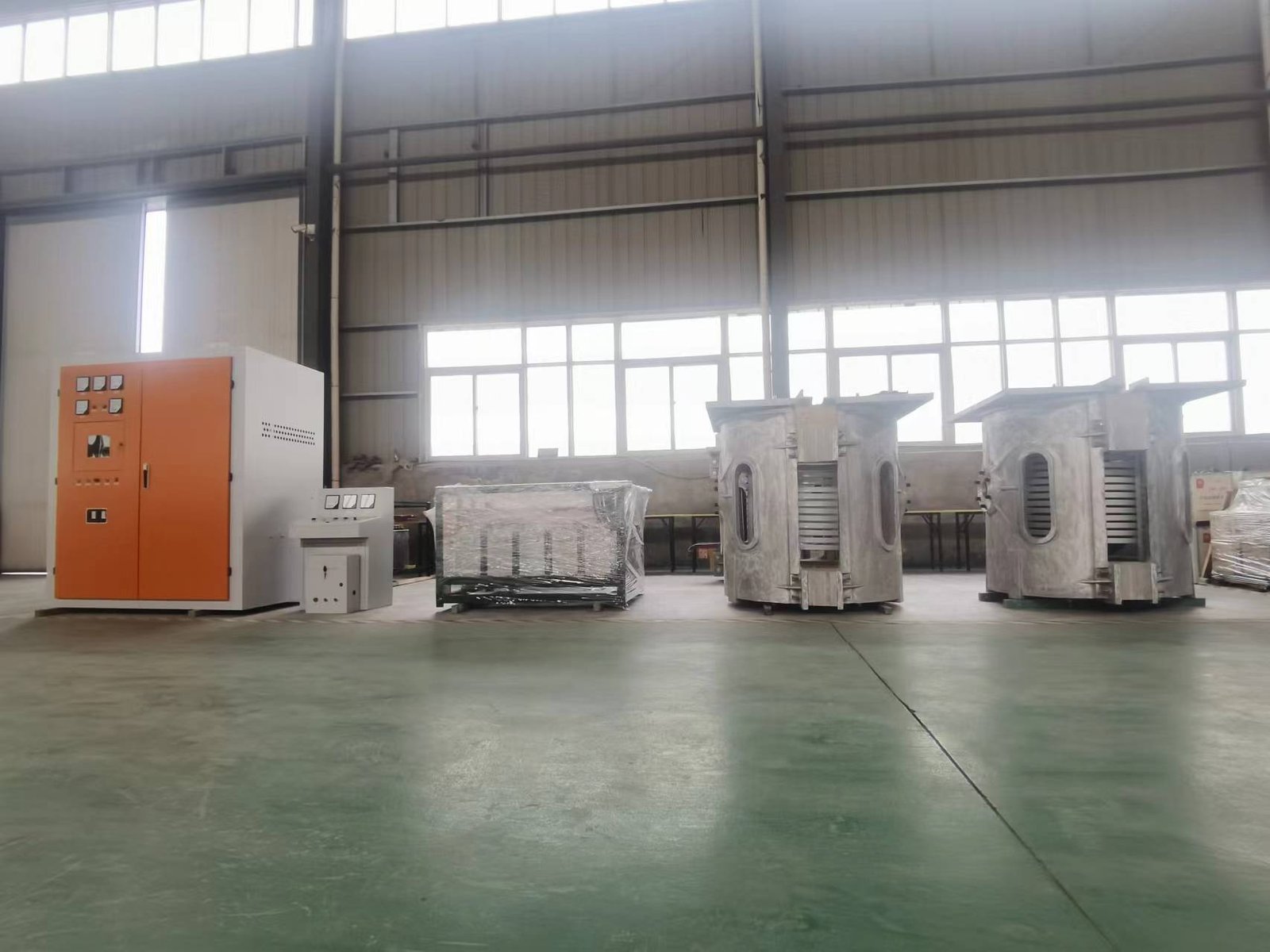

Product Configuration
- Automatic feeding and casting system

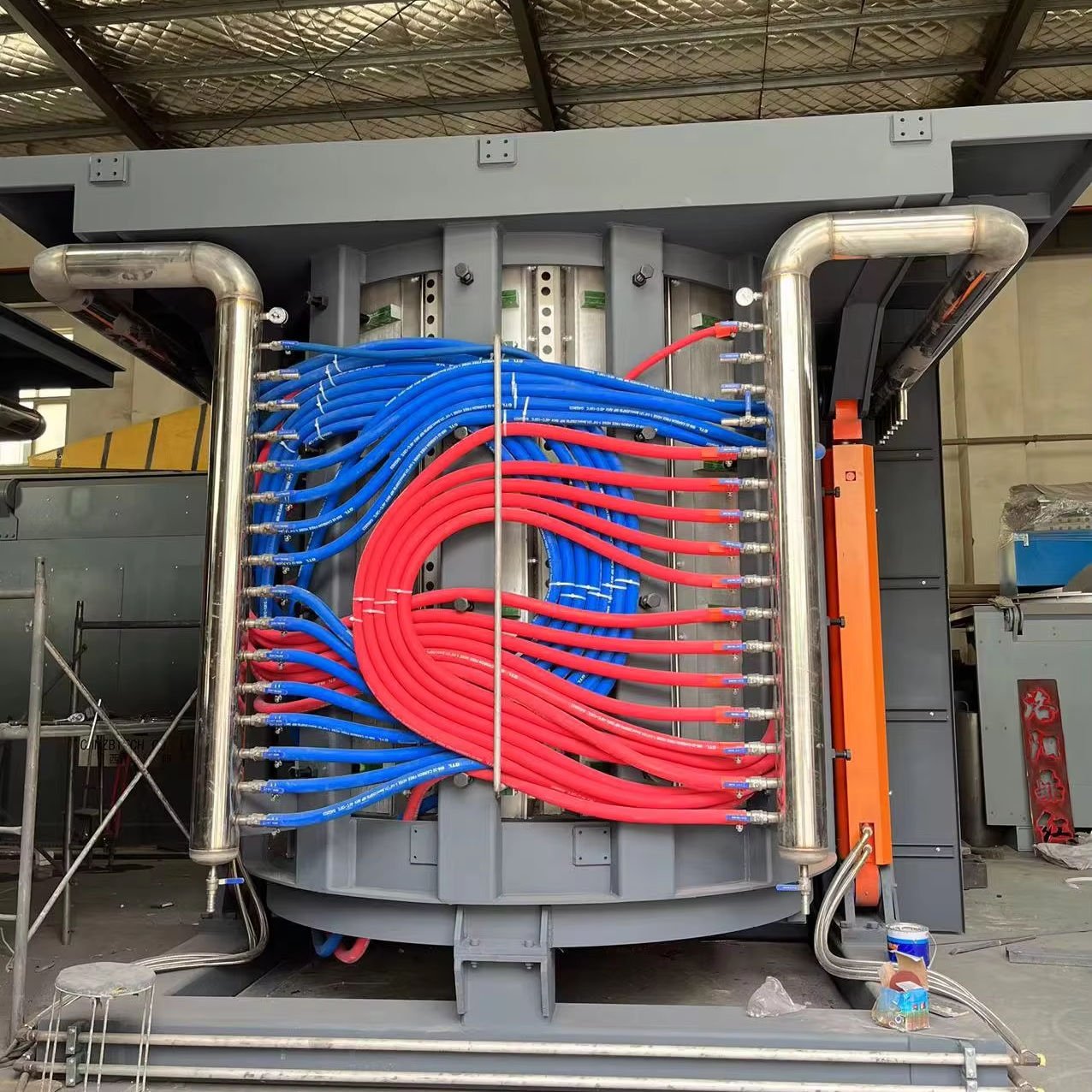

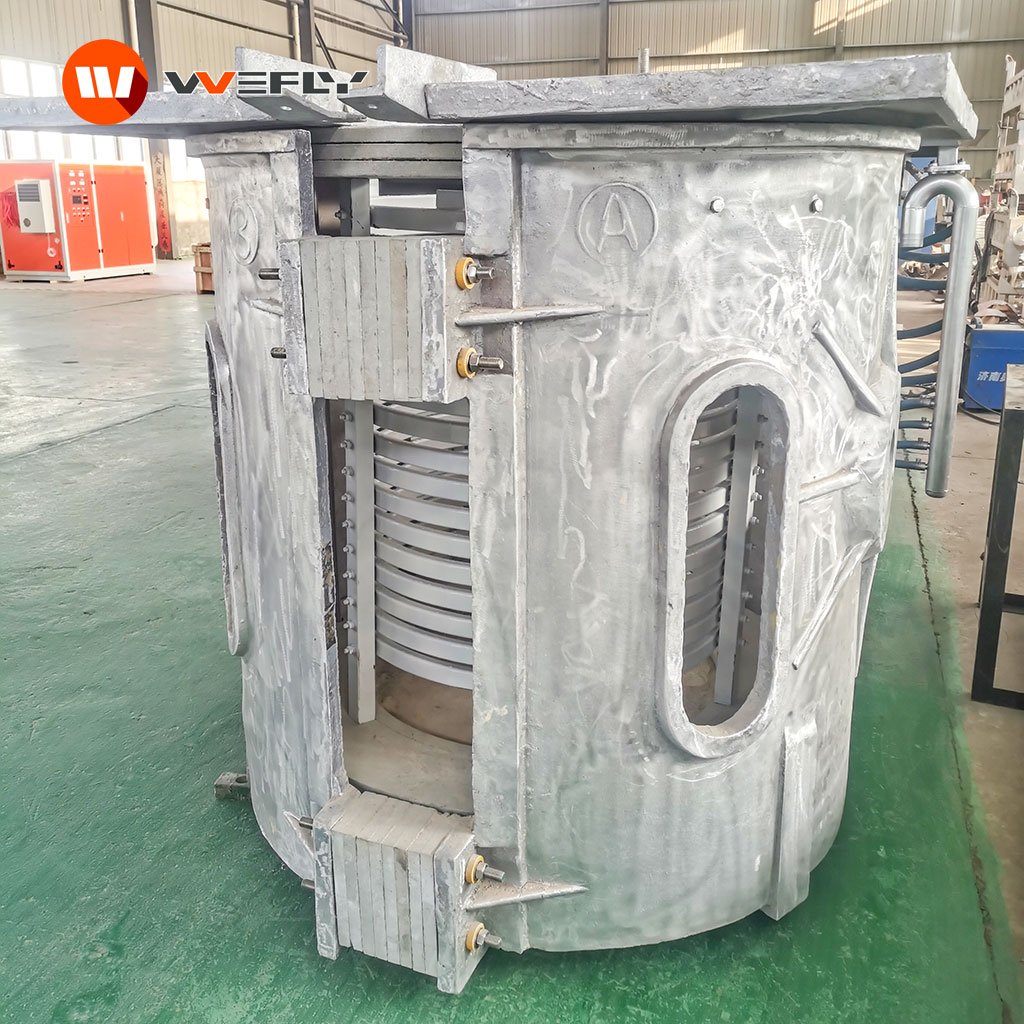

- Stainless steel crucible and induction coil

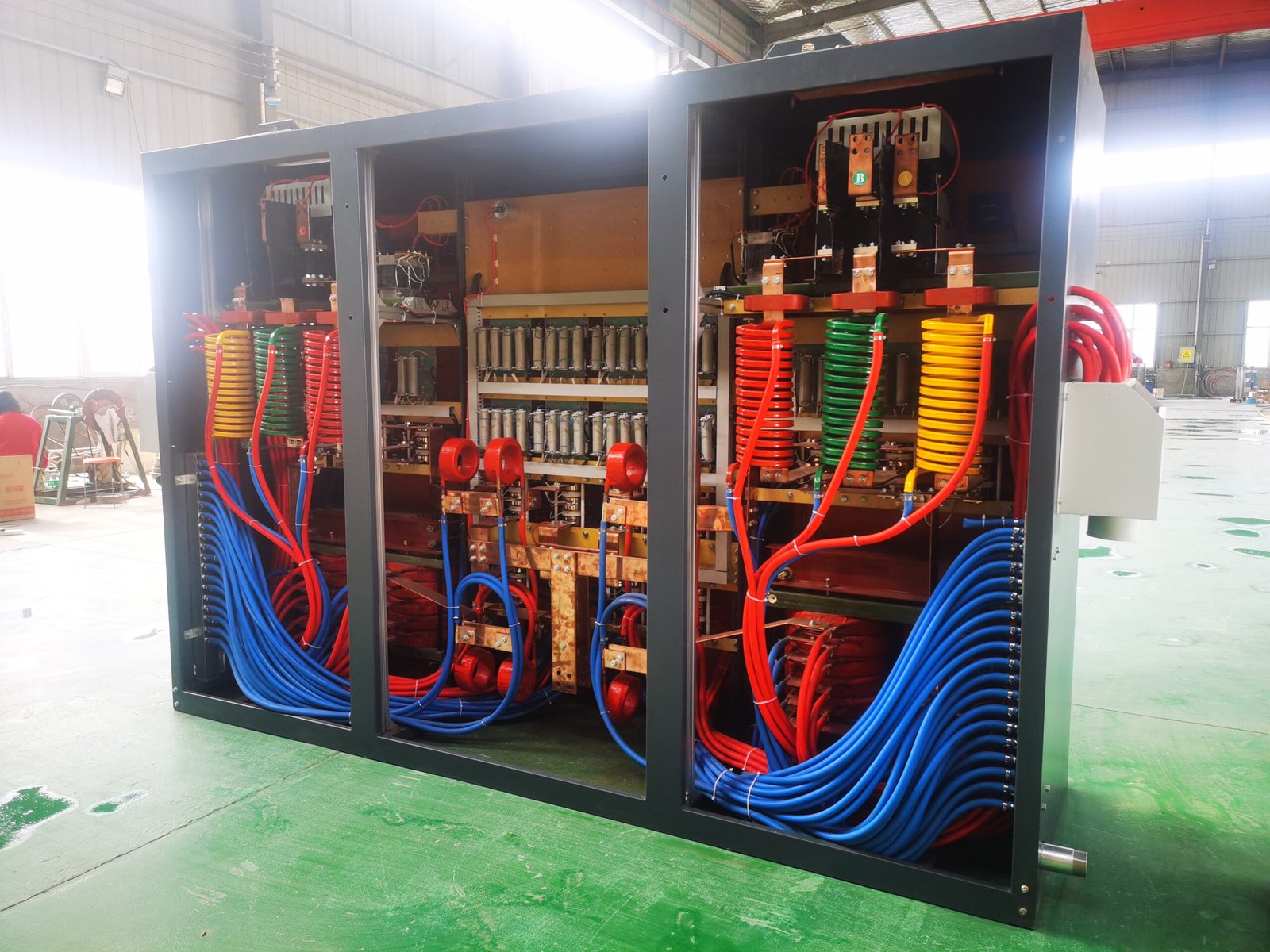

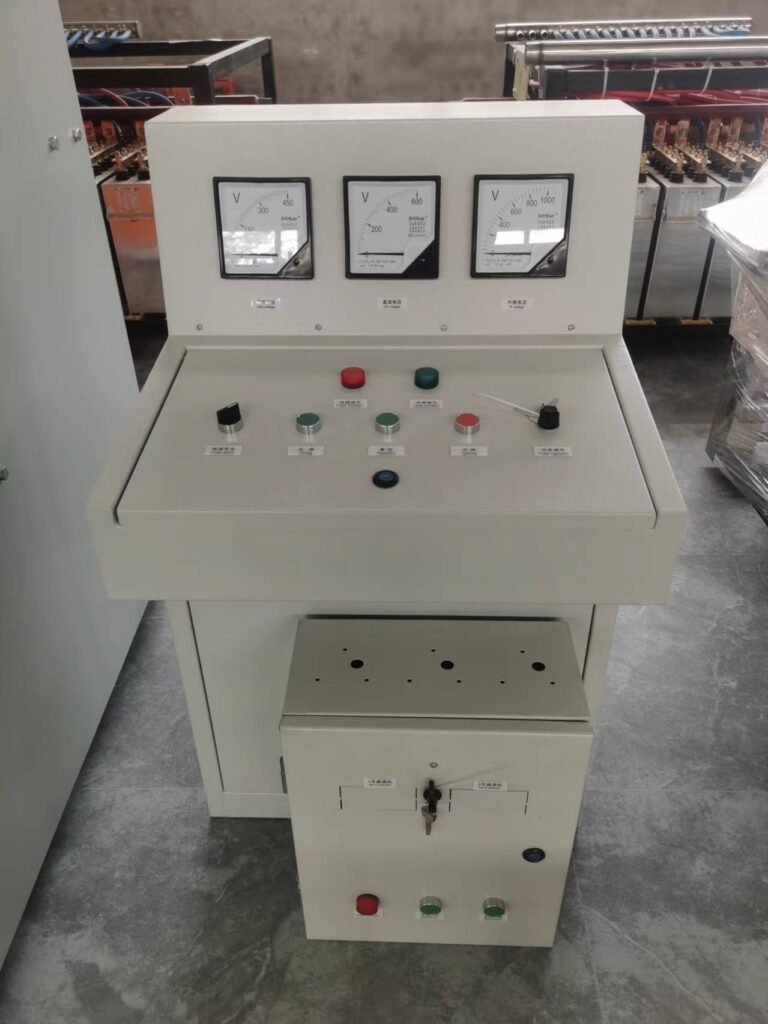

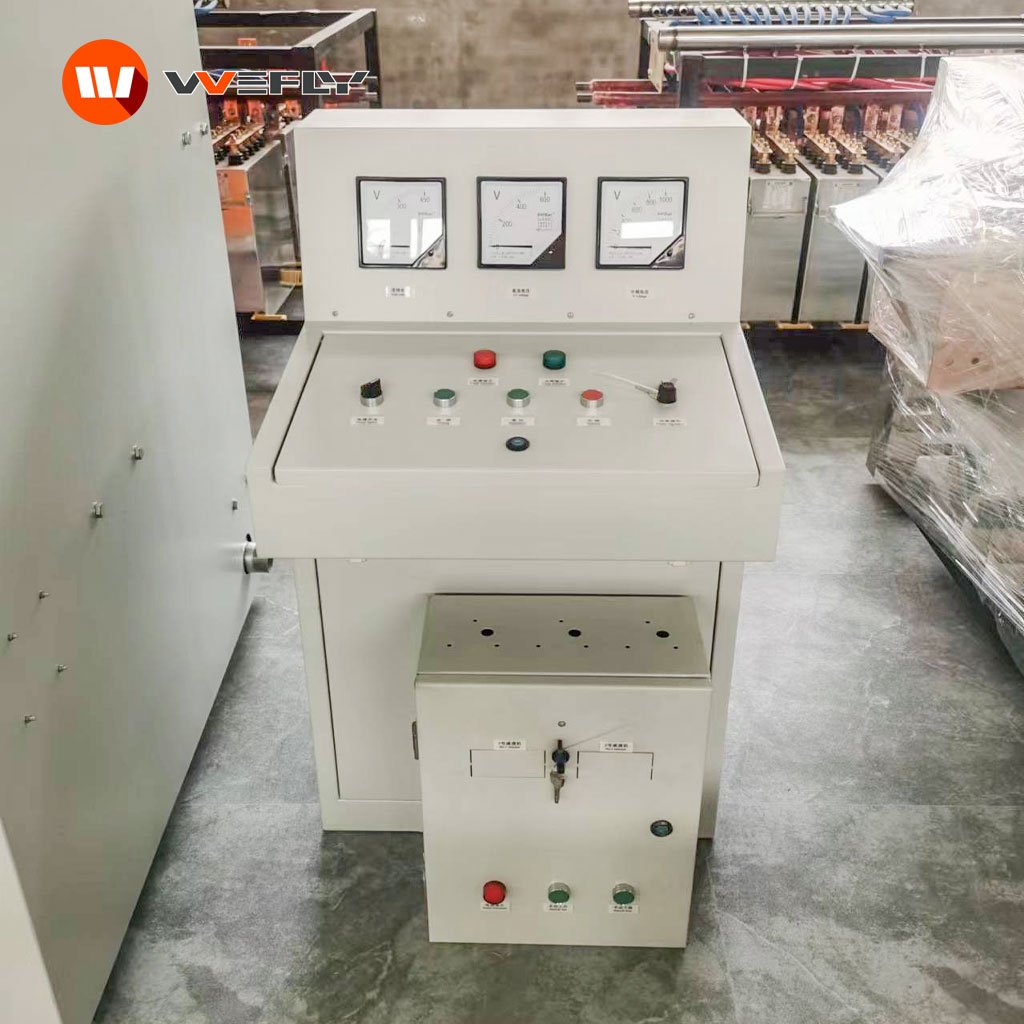

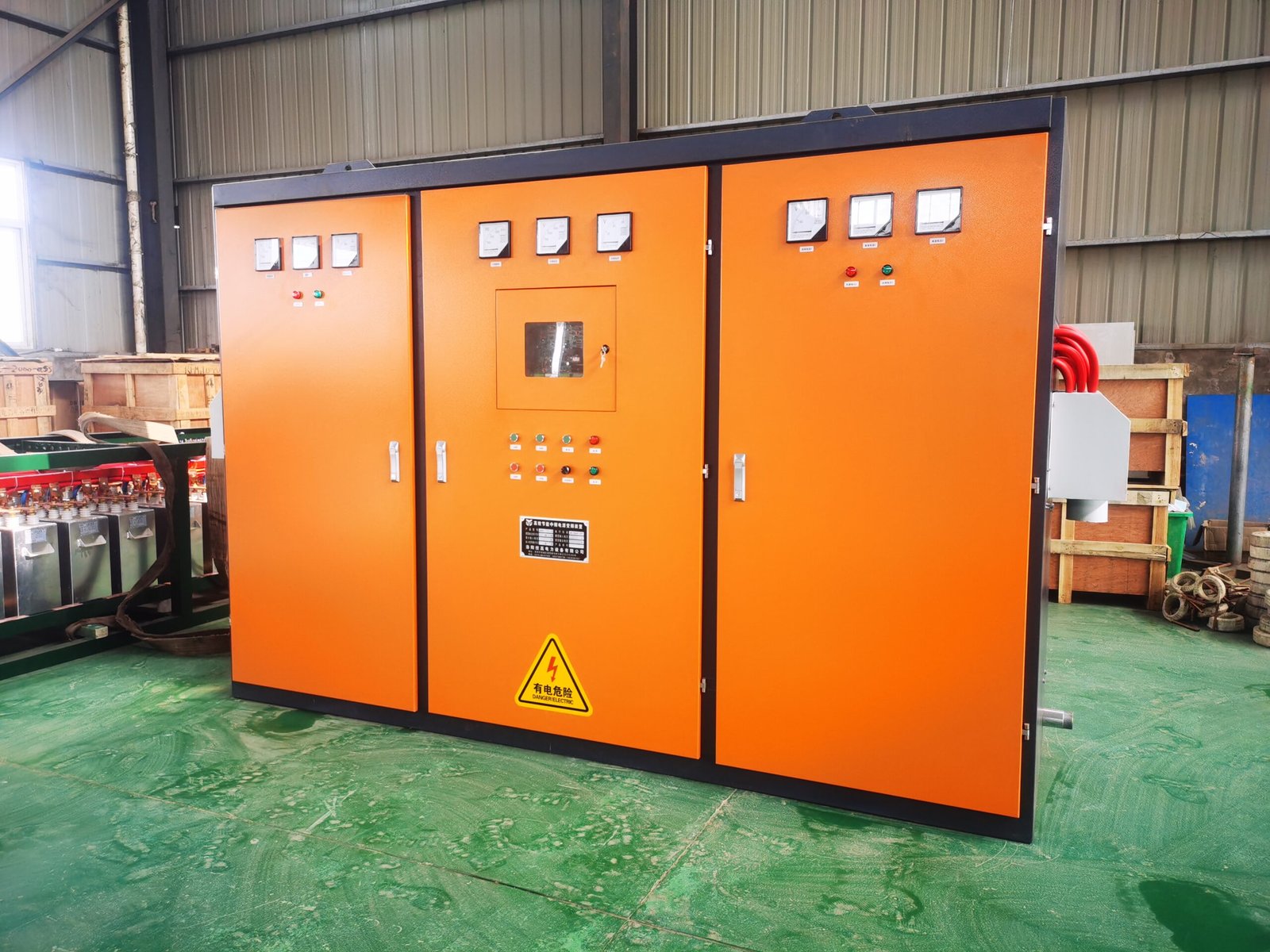

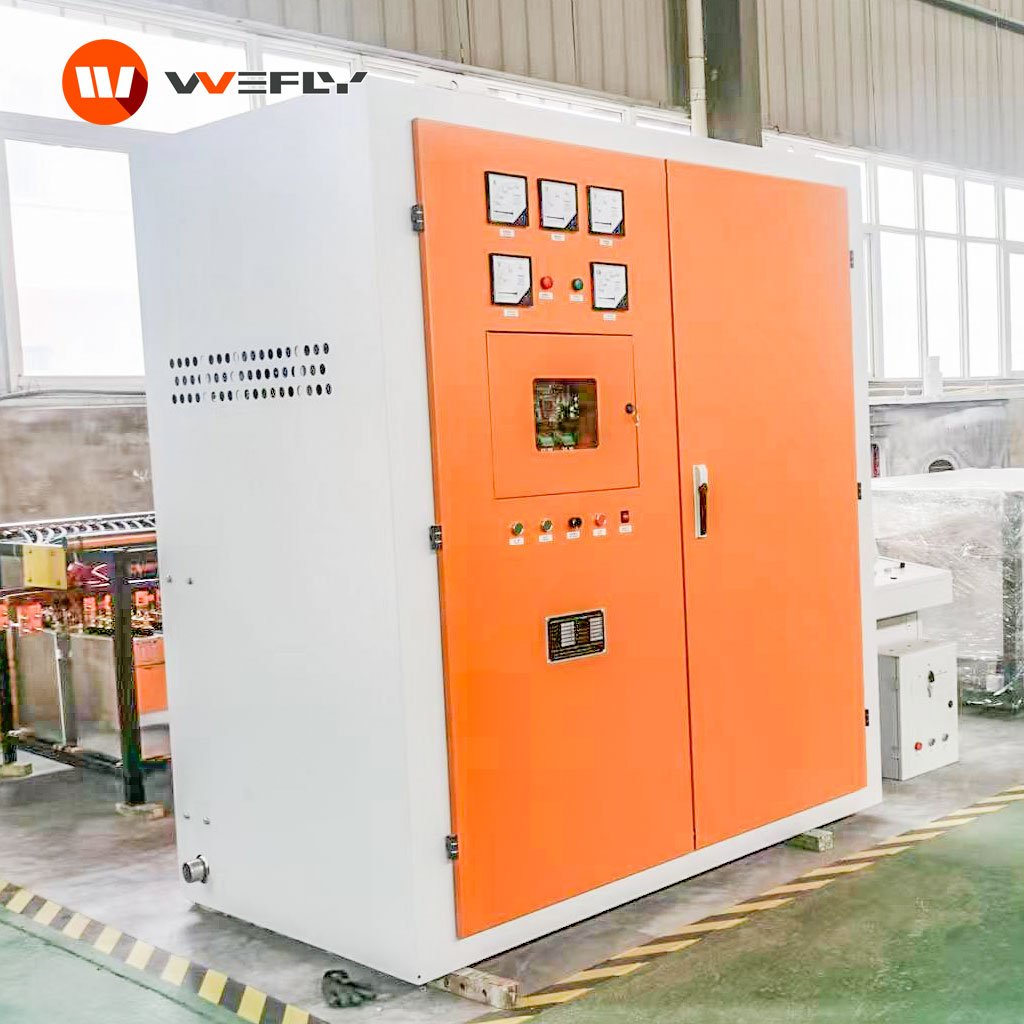

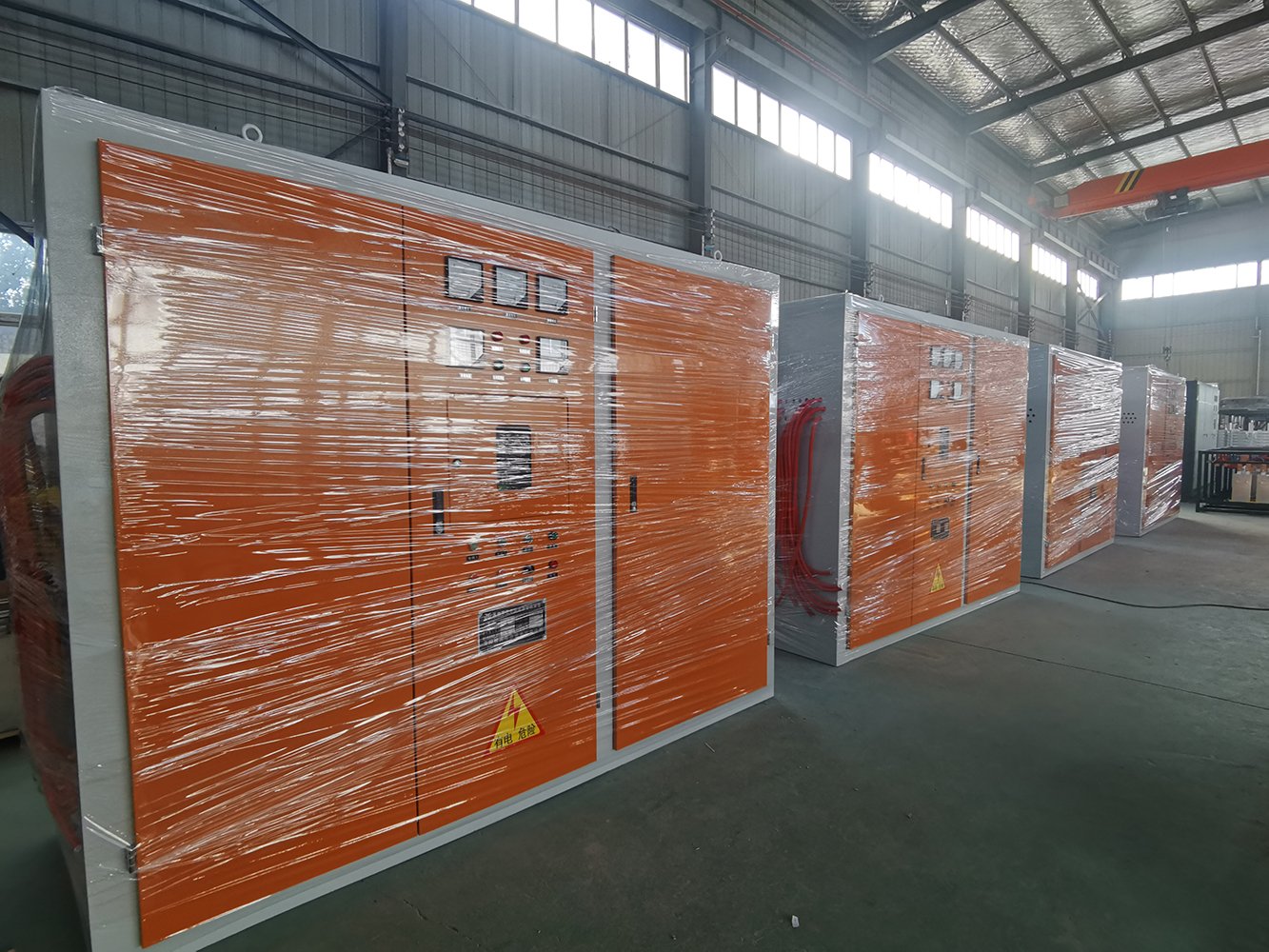

- Control cabinet with digital display
- Temperature sensors for precise monitoring
