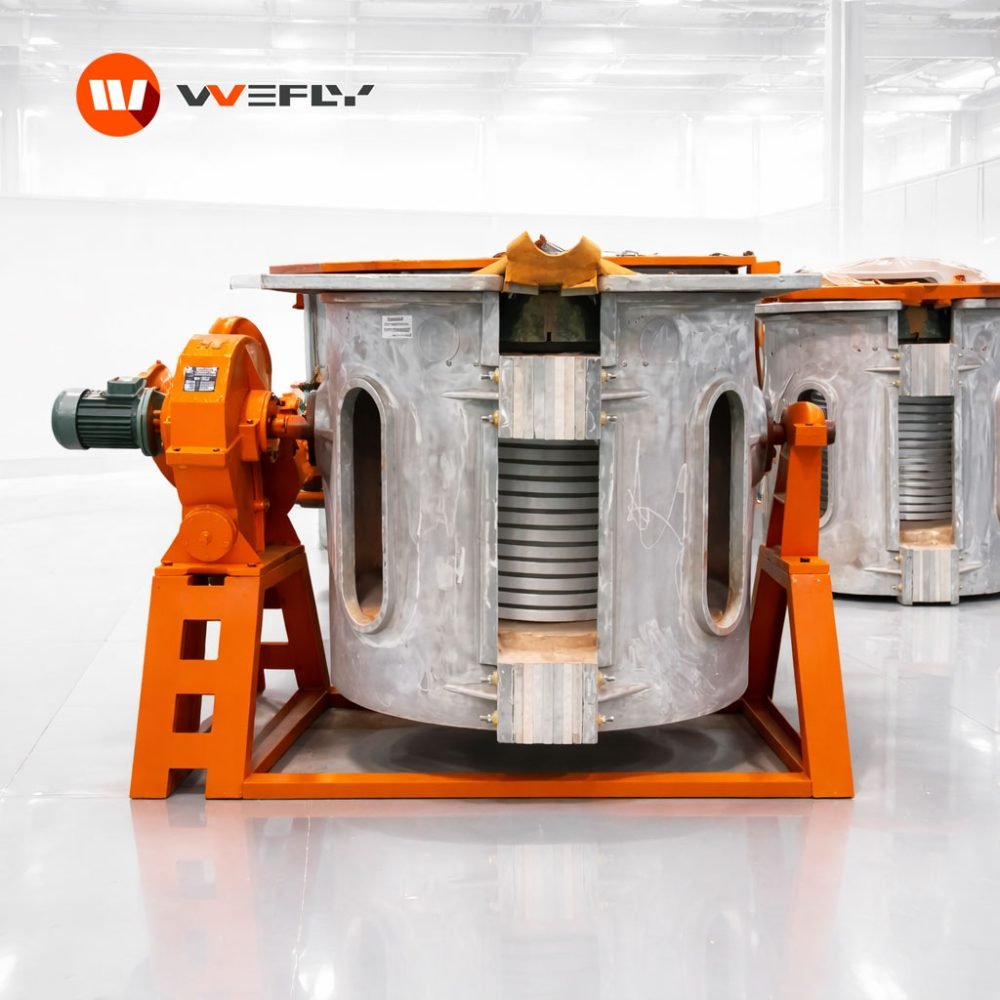

0.5T Professional Medium Frequency Induction Melting Furnace
The 0.5T medium frequency induction melting furnace is designed for efficient scrap steel melting
in casting plants and rolling mill operations. With a working temperature up to 1800°C and a melting capacity of 500–1000 kg per hour, this induction furnace delivers high thermal efficiency, low energy consumption, and stable continuous operation for industrial metal processing.
Technical Specifications
| Product Name | Induction Metal Melting Furnace |
|---|---|
| Furnace Type | Medium Frequency Induction Furnace (Reducer Tilting) |
| Working Temperature | Up to 1800°C |
| Melting Capacity | 500 kg/h – 1000 kg/h |
| Melting Time | 40–60 minutes per pot |
| Voltage | 380V / 50–60Hz |
| Cooling Method | Water Cooling |
| Material | Stainless Steel Structure |
| Core Components | Engine, Power Control Cabinet |
| Weight | 2 Tons |
| Dimensions (L×W×H) | 1950 × 1420 × 1700 mm |
| Certification | ISO, CE |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing Inspection | Provided |
| Place of Origin | Henan, China |
Key Product Features
- Capacity range from 0.1T to 20T available
- Fast melting speed: 40–60 minutes per cycle
- PLC intelligent control system
- Self-diagnosis and real-time monitoring function
- Leakage alarm protection system
- 24-hour continuous working capability
- High efficiency with low energy consumption
- Easy maintenance and stable operation
System Composition

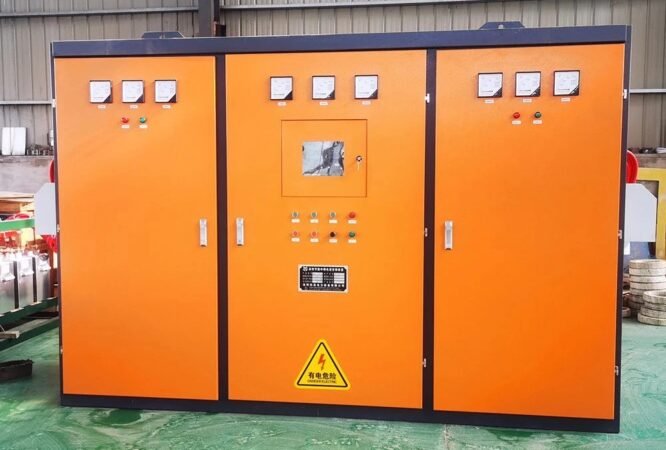

The induction melting furnace system is primarily composed of a power control cabinet and
a melting furnace body. The control cabinet follows automotive-grade standards for
improved durability and easy maintenance.
- Carbon-free water hose circulation system
- 304 stainless steel water separators and connectors
- Real-time monitoring of water temperature and pressure
- Over-current, over-voltage and phase protection system
- Stable reducer tilting pouring mechanism
Applications
- Scrap steel melting
- Foundry casting operations
- Rolling mill production lines
- Alloy metal melting
- Industrial metal recycling systems
Frequently Asked Questions
What metals can this induction furnace melt?
This 0.5T medium frequency induction furnace is suitable for melting scrap steel, alloy steel,
carbon steel, copper, aluminum, and other ferrous and non-ferrous metals.
How long does one melting cycle take?
The typical melting time ranges from 40 to 60 minutes per pot depending on material type and loading capacity.
Can the furnace operate continuously?
Yes. The system is designed for 24-hour continuous operation with water cooling protection
and intelligent real-time monitoring.
Is customization available?
Yes. We provide customized capacity, voltage configuration, control system upgrades,
and complete melting line integration solutions.
What safety protections are included?
The furnace includes over-current protection, over-voltage protection, phase loss detection,
water temperature and pressure monitoring, and leakage alarm systems.
Looking for a Reliable 0.5T Induction Melting Furnace?
Get professional technical consultation, layout design, and customized melting solutions
tailored to your casting or mill operation.
